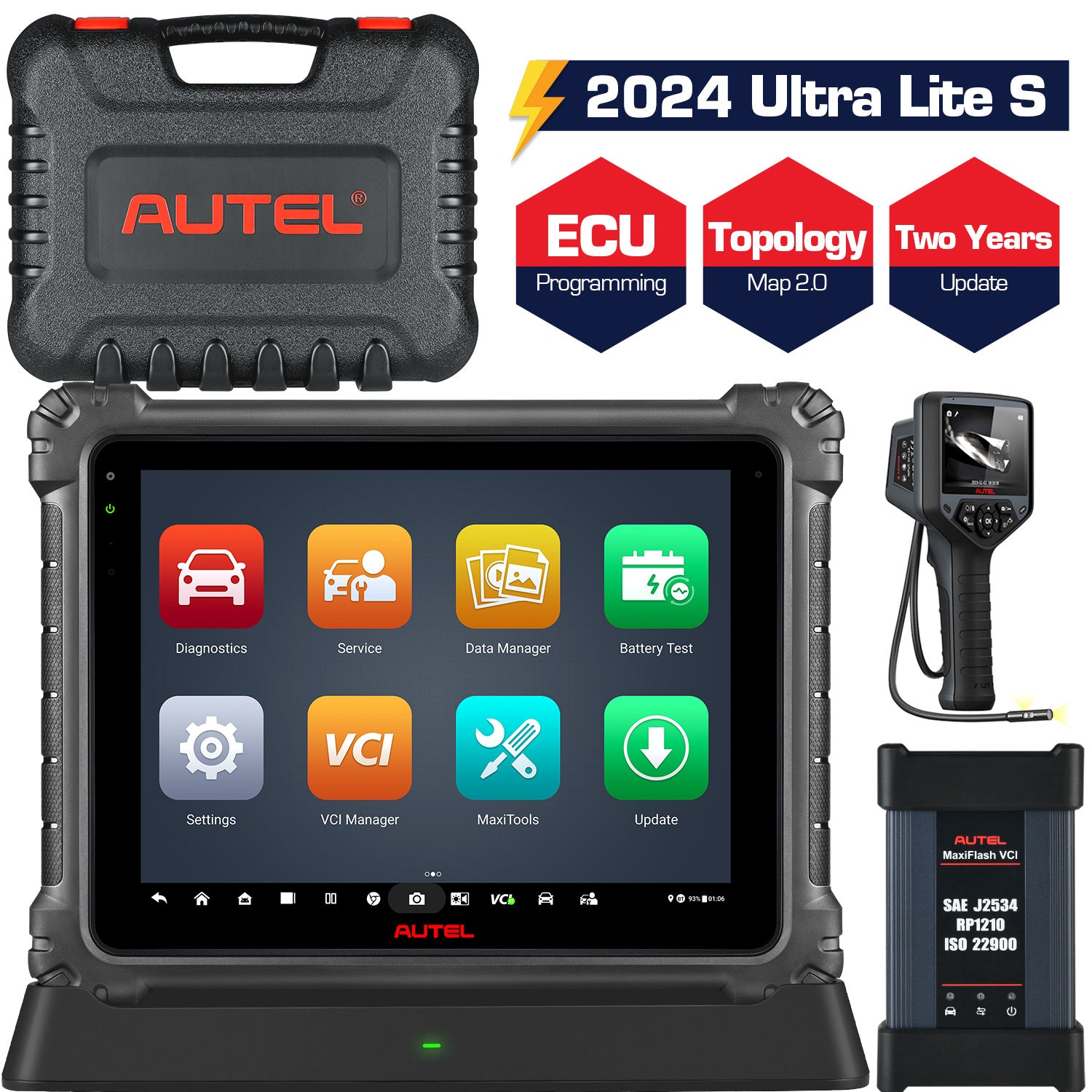

Autel MaxiCOM Ultra Lite S Diagnostic Scan Tool 2024

Autel MaxiCOM Ultra Lite S (Ultra Lite) is the 2024 most promising diagnostic scan tool combining the advanced features and the top-of-the-line hardware of MaxiSys Ultra/MS909. It not only diagnoses more than 10,000 models worldwide but also provides 40+ services, bi-directional control, advanced ECU programming & coding. This Autel Scanner MaxiCOM Ultra Lite S works faster, smarter, and more efficient, helping you save time and win more business.

Top Reasons to Choose Autel MaxiCOM Ultra Lite S:

  • Topology Module Mapping: Provides a color-coded topology display for all vehicle systems' relationship and their status on one page and you can better analyze the system faults.
  • Support D-PDU/SAE J2534/RP1210&DoIP/CAN FD: Wider vehicle coverage for 99.99% makes in the market
  • Advanced ECU Programming & Coding: MaxiCOM Ultra Lite S is capable of performing ECU programming on specific BMW and Benz vehicles and ECU Coding for Benz, BMW, Audi, Porsche, VW, etc.
  • 40+ Popular Services: More than 40 functions have been packed on MaxiCOM Ultra Lite S to help you deal with various types of issues.
  • OE-Level All Systems Diagnostics: Scan and Diagnose all systems and subsystems
  • 10+ Extensive Features: Support wider vehicle coverage, more frequent updates, WIFI print reports, Pre & Post scan, FCA & Renault SGW, report management, remote diagnoses, and extended features such as battery tester.
  • Powerful Hardware: Android 7.0 OS, Sam-sung Octa-core processor, 4GB RAM & 256GB memory, 12.9''' 2732x2048 TFT-LCD touch screen, 5M front & 16M rear cameras, 18000mAh battery
  • Support Multi-Language & NO-IP Limitation: You can use Ultra Lite with your own languages and use it without IP Limitations.
  • VAG Guided Functions & FCA AutoAuth: MaxiCOM Ultra Lite S are friendly to VAG vehicles.
  • Comes with 2 Years Free Update: Ultra Lite S comes with 2-year free update service.(You will get two years update within 3-5 days after your registration)

AutoScan 2.0, the Enhanced Feature for Ultra Lite S that you might be interested in for 2024.

What vehicle brands, and models are supported?

  • Supported Brands: Most common brands are supported, including VW, Audi, Skoda, Seat, Mercedes-Benz, GM, Chevrolet, Chrysler, Dodge, Jeep, Honda, Acura, Hyundai, Kia, Nissan, Infiniti, Toyota, Lexus, Scion, Ford, Renault, Dacia, Samsung, Peugeot, Citroen, DS, BMW, Mini, etc. (Aston Martin, Ferrari, Fiat Brazil, Hyundai CV, Maserati, McLaren, Porsche are not supported).
  • Supported Models: Supports all CAN protocol models, regardless of the year

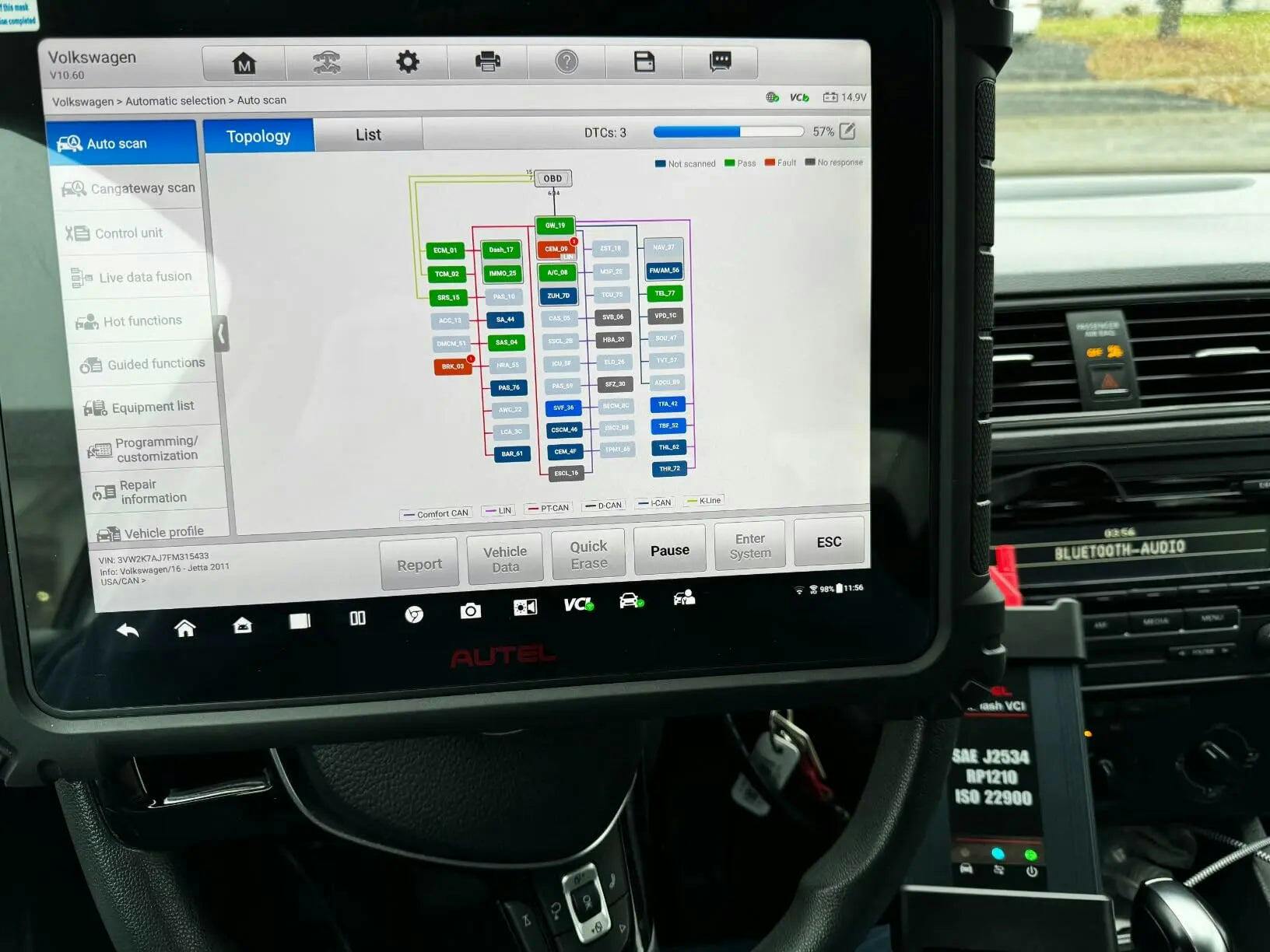

MaxiCOM Ultra Lite S Revolutionary Topology Module Mapping

Unique Auto scan Topology Module Tree, Find the Roots of Problems at a Glance:

  • Intuitively display the current module status, all come in view (includes whether there's a DTC in a specific module, and the number of DTCs).
  • Systematically show the communication structure between the modules.
  • Directly display the fault code and enter the system to perform functions.
  • Clearly view the color coded module status tree by zooming in and out.

The new Topology Module Listing CAN BUS Tree, specially designed for the OEM diagnostic tools, shows all available control units of the test vehicle in different colors, helping users get to know the numbers of systems, the scanned systems, and the scan results at a glance.

The main section of Auto Scan screen displays a System List for most vehicles, a topology map at the same time for some vehicles, including Volkswagen, Audi, BMW, Ford, Land Rover, Jaguar, Chrysler, Fiat, Volvo and more.

Note: The function is not universally compatible with all vehicles. Please send us your VIN# to help you check compatibility first. Please Email us

Ultra Lite S Intuitive Topology Mapping

Advanced ECU Programming And ECU Coding

Autel MaxiCOM Ultra Lite S comes with J2534 ECU programming device BMW Ethernet Cable (For F-Series Coding Programming), which is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new Benz/ BMW ECUs and fixing software-controlled drivability issues and emission issues, update the computer software on the vehicle to the latest version.

Autel top scanner MaxiCOM Ultra Lite S with VCI can help you solve all above issues. With D-PDU, SAE J2534 & RP1210 protocols, Auto scan tool MaxiCOM Ultra Lite S provides diagnosing, coding, and programming for more passenger and commercial vehicles, much more advanced than J2534 programming tools.

  • Online ECU programming & coding without any special connectors for BMW (F & G chassis)
  • Online ECU programming for new chassis of Benz (204, 212, 207, 463, etc.); Online SCN for Benz (222, 212, 204, 205, etc.)
  • Online ECU coding for Volkswagen, Audi, Porsche, Renault, etc.
  • ECU programming & coding for GM, Ford, Chrysler, Volvo, Land Rover, Jaguar, etc.
  • The VCI module also supports various common vehicle buses protocols, for instance: KPW, CAN, CAN-FD, DoIP, etc. Speaking of the CAN-FD, its transmission speed is 14 times faster than CAN.

Ultra Lite S advanced ECU Programming Coding

MaxiCOM Ultra Lite S with Comprehensive Service Functions

The MaxiCom Ultra Lite S is able to meet most vehicles maintenance demands such as Oil Reset, EPB, BMS, ABS Bleed, TPMS, Airbag Reset, DPF Reg, IMMO Service, Injector Coding, SAS Calibration, Suspension Calibration, Throttle Adaption, ABS/SRS, Gear Learning, etc.

  • Oil Reset Service: It allows you to perform a reset for a new calculation of the Engine Oil Life system once changed the oil.
  • EPB: The service is essential in the maintenance of the electronic braking system's safety and efficiency.
  • BMS: The service allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
  • DPF: The service specially works for the Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
  • SAS: The service helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
  • TPMS: The service makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
  • ABS Bleeding: ABS brake bleeding to get a firm brake pad after air exhaustion.

ultra lite s 40+ hot services

MaxiCOM Ultra Lite S with Active Test(Bi-Directional Control)

The Active Test function is used to access vehicle-specific subsystem and component tests. Available tests vary by vehicle. During an active test, the tablet sends commands to the ECU to activate the actuators. This test determines the integrity of the system or part by reading ECU data or by monitoring the operation of the actuators. Such tests may include toggling a solenoid, relay, or switching, between two positions.

Ultra Lite S with active test

Two Years Free Update Service

The Autel MaxiCOM Ultra Lite S comes with two years of free update service so that you can keep up with Autel's latest software updates and vehicle coverage.

Broad Vehicle Coverage

In addition to the D-PDU/SAE J2534/RP1210 diagnostic protocols, this OBD2 intelligent diagnostic tool MaxiSys Ultra also supports the DoIP and CAN FD protocols for more new vehicle models, covering 95% of vehicles on the market. It is a great fit for professional mechanics looking for a diagnostic scanner that supports almost any car they may encounter.

MaxiCOM Ultra Lite S with Extensive Functions

VAG Guided Function 2.0

Step-by-step special functions guidance not only for most VAG vehicles(Audi/VW/Skoda/Bentley/Seat/VW_CV/Man_LD),but for Benz/BMW/Mini(First Release), and it performs special functions without the security access code, which simplify workflows and improve efficiency.

New Energy Vehicle Support - Tesla & McLaren

Unlike traditional diagnostic scanners, Autel MaxiCOM Ultra Lite S support new energy vehicle - Tesla and McLaren for diagnostic.

Gain More Business - Click to Buy Extra Tesla Diagnostic Cables

Pre & Post Scan - Report is customized with shop and vehicle info

  • Pre-scan Report: To help to expedite insurance carries approval of repair estimates, avoiding additional insurance authorizations.
  • Post-scan Report: To prove all DTCs on the Pre-Scan report are fixed. DATED scan report to ensure vehicles are repaired and safe for customers.

Compatible with BT506/MV108S(NOT INCLUDED)

Autel MaxiCOM Ultra Lite S is exclusively equipped with battery test ability(Work with BT506), and compatible with the MaxiVideo MV108S inspection camera for up-close visual inspections.

21+ Languages Supported

This scanner MaxiCOM Ultra Lite S comes programmed in English but you can easily switch it into language that you prefer: Spanish, French, German, Russian, Portuguese, Polish, Italian, Japanese, Korean, Dutch, Swedish, Persian, Turkish, Thai, Vietnamese, Hebrew, Arabic, Indonesian, Simplified Chinese, Traditional Chinese. Please send us the S/N to authorize the language you would like to change.

FCA AutoAuth

There is no need to dismantle the FCA cars & diagnose with the 12+8 adapter. Just register an "AutoAuth" account on the device and you can pay tp diagnose the FCA vehicles after 2017.

Two Years Free Update Service

The Autel MaxiCOM Ultra Lite S comes with two years of free update service so that you can keep up with Autel's latest software updates and vehicle coverage.

Autel MaxiCOM Ultra Lite S Specifications

Operating System Android 7.0
Processor Samsung Exynos 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory 4GB RAM & 256GB On-board Memory
Display 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen

WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO)

BT v.2.1 + EDR


USB 2.0 (TWO USB HOST Type A, ONE USB mini device)

HDMI 2.0

SD Card (Support up to 256GB)

Rear: 16 Megapixel, Autofocus with Flashlight

Front: 5.0 Megapixel

Gravity Accelerometer, Ambient Light Sensor (ALS)

Audio Input/Output


Dual Speakers

3-Band 3.5 mm stereo/standard headset jac

Power and Battery

15000mAH 3.8V lithium-polymer battery

Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage 12V/3A Adapter
Operating Temperature 0 to 50°C (32 to 122°F)
Storage Temperature -20 to 60°C (-4 to 140°F)
Dimensions(W x H x D) 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight 1.66kg (3.66 lb.)
Protocols DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
Update Service 2-year free software update

Autel Ultra Series Comparison Chart

Autel MaxiCOM Ultra Lite S diagnostic scanner has total same hardware specification and software functions as Maxisys Ultra, the main difference between both is Ultra lite S comes with MaxiFlash J2534 VCI while the Maxisys Ultra scanner is equipped with MaxiFLASH VCMI 5-in-1 VCI.

Model Ultra Lite S Ultra
VCI MaxiFlash VCI 5-in-1 MaxiFlash VCMI

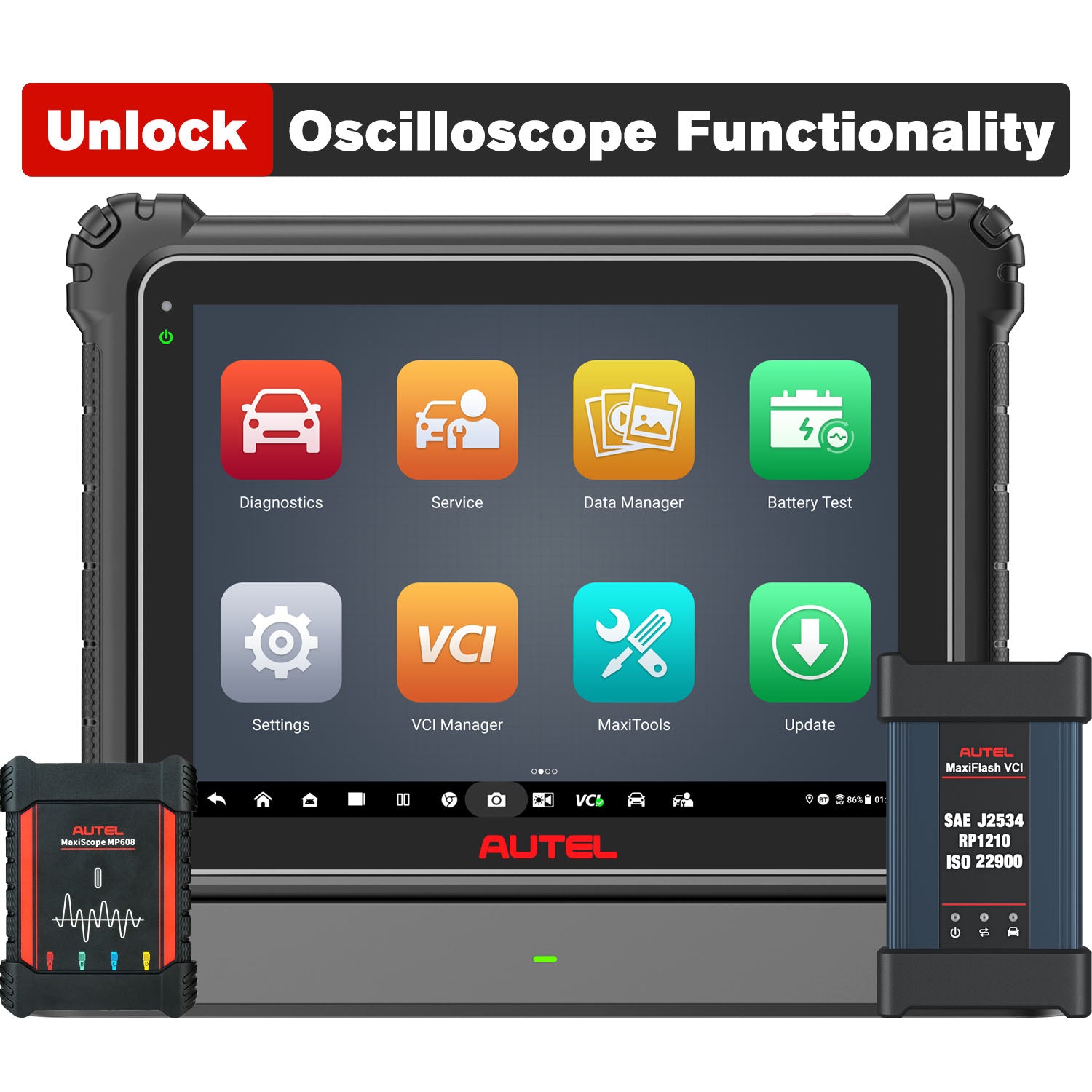

Oscilloscope function /(Need MP408) VCMI comes with oscilloscope function
AccuFix / Support
Repair Data / Support
Language Multi-language Only English

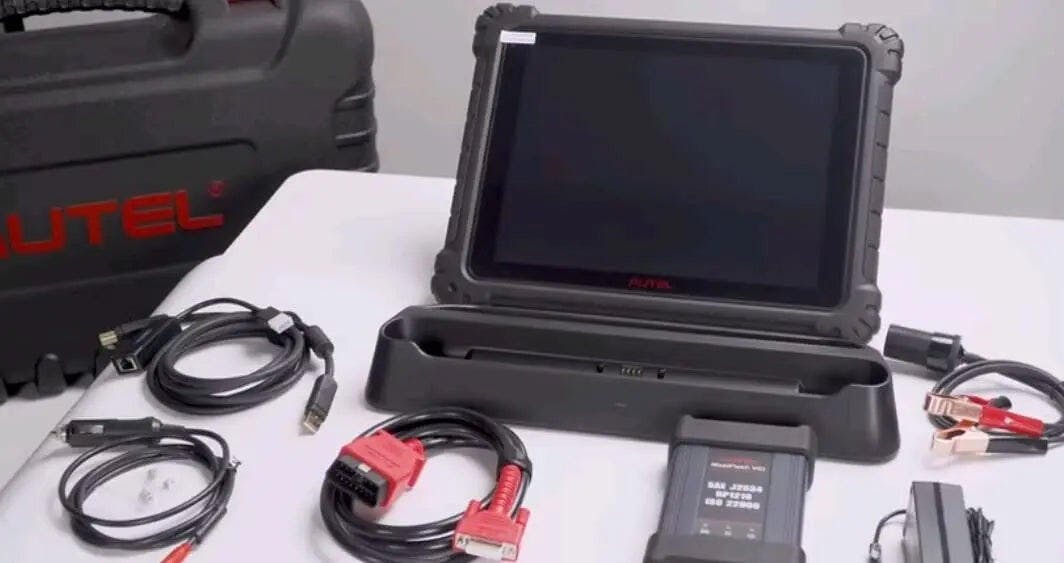

Autel MaxiCOM Ultra Lite S Package Content:

  • 1x MaxiCOM Ultra Lite S Main Unit
  • 1x MaxiFlash VCI
  • 1x Docking Station
  • 1x Main Cable V2.0
  • 1x USB 2.0 Cable V2
  • 1x AC/DC Adapter(12V)
  • 1x Auxiliary Power Outlet Adapter
  • 2x Spare Fuse 6x30mm
  • 1x Clamp Cable
  • 1x USB to Ethernet Adapter
  • 1x Quick Reference Guide
  • 1x Packing List
  • 1x Soft Cloth
  • 1x Carrying Case 650 x 185 x 430 mm

MaxiCOM ultra lite s list

Ultra Lite S Product guides and documents

Ultra Lite S User Manual (PDF)

MaxiCOM Ultra Lite S Software Update

MaxiCOM Ultra Lite S Software Update
