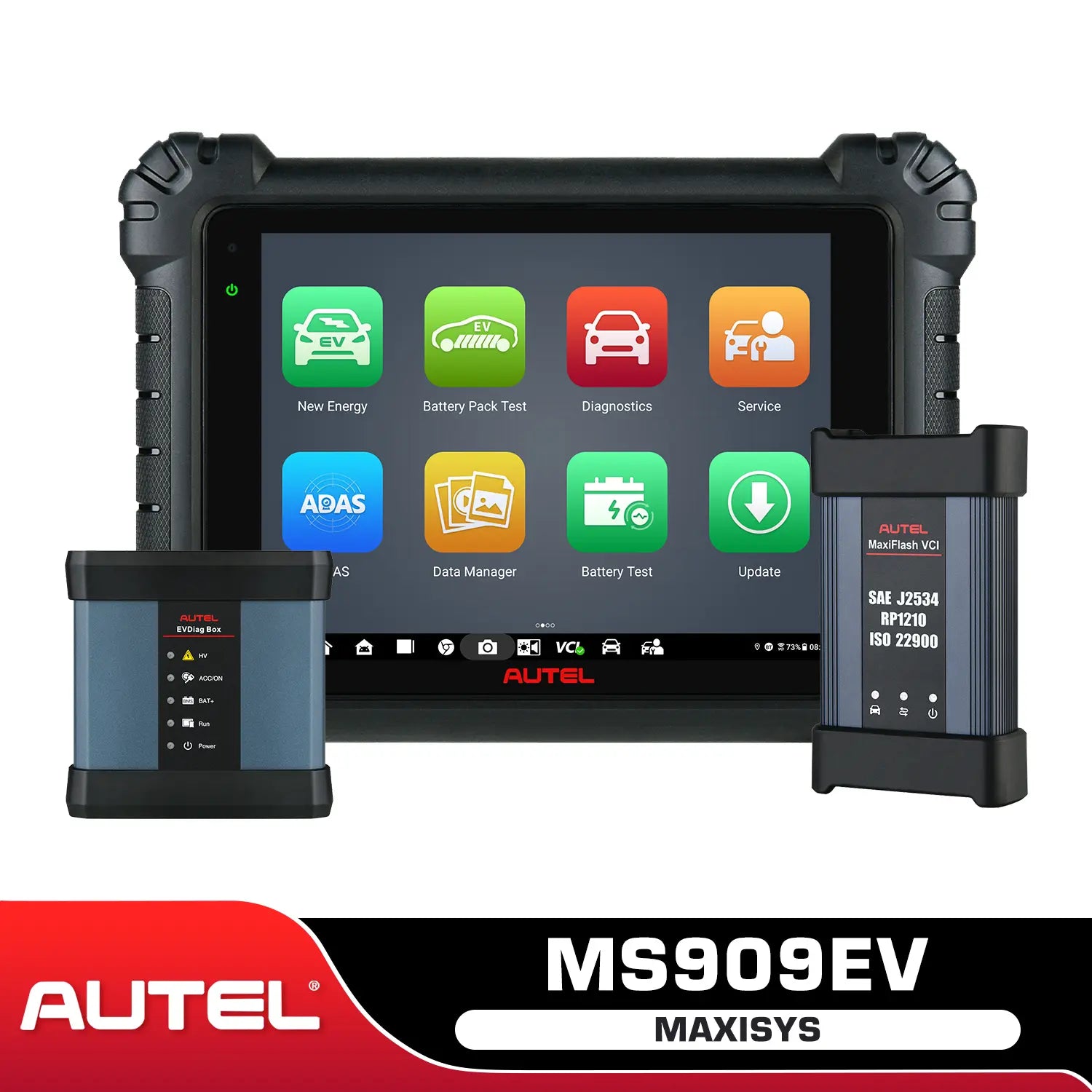

Autel Maxisys MS909EV Intelligent EV Diagnostics Scanner, ECU Programming & Coding, Topology Map 2.0, 40+ Services, MaxiFlash VCI, High-Voltage System, Battery Pack Diagnostics, Same as Autel Ultra EV

332 sold in past month
$3,499.00 $6,299.00
Item :
$3,499.00
$3,549.00
$3,569.00
$3,619.00

Delivered by Sun, Apr 21 - Tue, Apr 23 Ship from New Jersey or California, United States

Have a Question? Ask a Specialist
sales@diagmart.com Live Chat
Authorized Dealer

Fast Free Shipping

Delivery with UPS, USPS, FedEx

30-Day Return

30 Days from Date of Delivery

1-Year Free Warranty

1 YEAR from Date of Activation

shipping policy icon

Fast Free Shipping

Delivery with UPS, USPS, FedEx

return policy icon

30-Day Return

30 Days from Date of Delivery

Warranty icon

1-Year Free Warranty

1 YEAR from Date of Activation

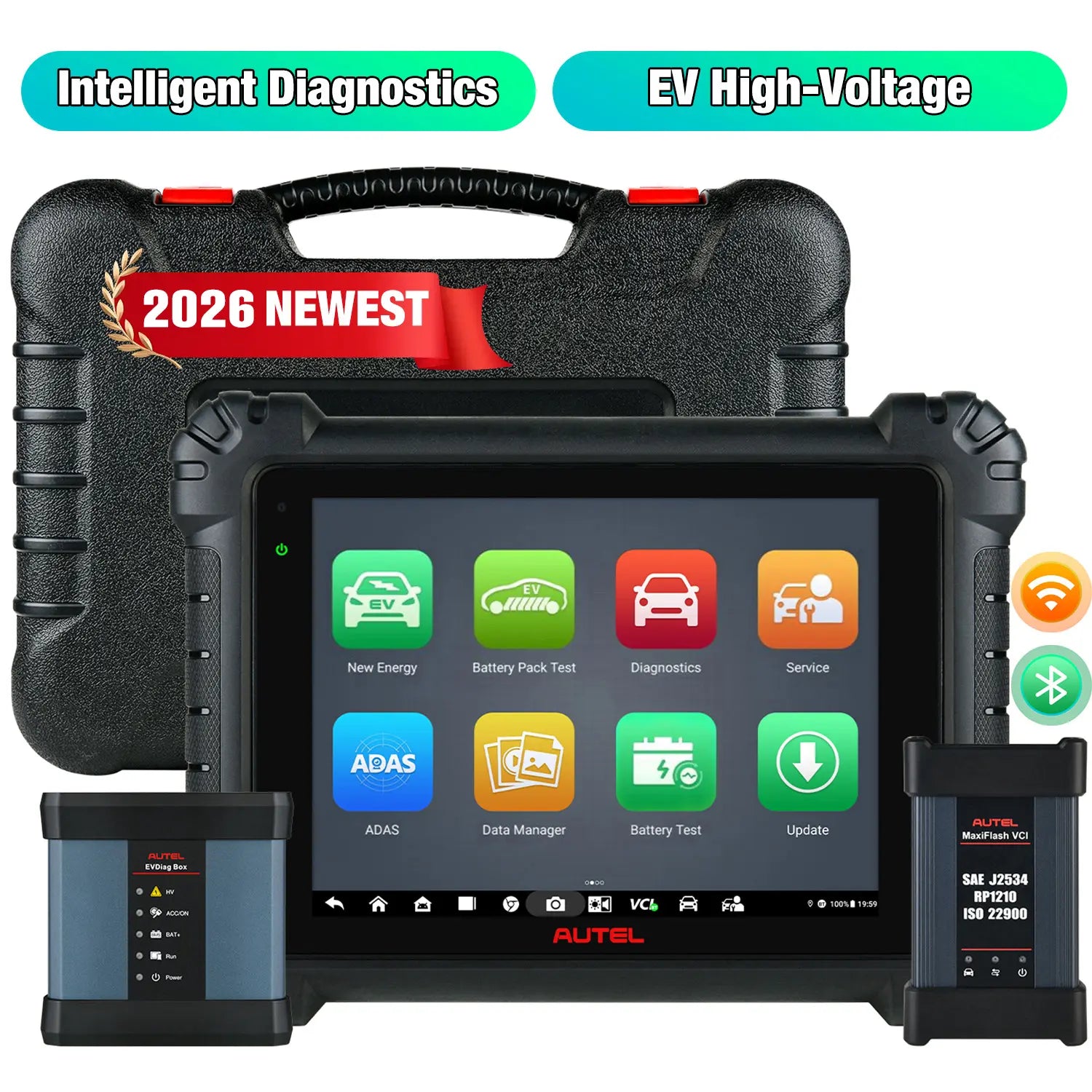

Autel Maxisys MS909EV Electric Vehicle Diagnostic Scanner

The Autel MaxiSys MS909EV is a new generation of intelligent diagnostics scanner for electric, hybrid, gas and diesel vehicles. With its dedicated EVDiag Box, MaxiFlash VCI, and features High-Voltage System, Battery Pack Test, Intelligent Diagnostics & Topology, ECU Programming & Coding, 40+ Hot Services, Tesla & McLaren Diagnostic, Active Test & VAG Guided Functions, the MaxiSYS MS909 EV - Electric Vehicle Diagnostic Scan Tool provides a comprehensive approach to advanced electric and hybrid vehicle diagnostics. It's really a good choice to prepare for electric vehicle future, which will help you win more business.

MS909EV Features

Why Autel Maxisys MS909EV Stands Out?

  • EV High-Voltage System Diagnostics: Scan HV System for Codes, Clear Codes, Diagnostic Reports, HV Parts Replacement for Electric Vehicles.
  • Out-of-Vehicle Battery Pack Analysis: Battery Health, SOC, SOH, Temperature, Battery Maintenance for Electric Cars.
  • Wide EV Vehicle Coverage: Compatible with New Energy Vehicles of BMW, VW, Audi, Skoda, Tesla, Ford, GM, etc.
  • Top Intelligent Diagnostics: Provides One-Stop Solution for DTCs, Technical Services Bulletins, DTC analysis, Repair Assist & Tip, Relevant Cases.
  • Enhanced Topology Map 2.0: Offers a visual representation of relationships elements within a communications network for BMW, Ford, Audi, Chrysler, Honda, Toyota, etc.
  • Advanced ECU Programming & Coding: Program New blank ECU Modules for BMW & Benz, and reprogramming the adaptive data to ensure optimal performance after repair or replacement for BMW, Porsche, VW, Audi, etc.
  • 40+ Hot Services: MS909EV has been designed with 40+ commonly-used service functions, surpassing many other Autel Maxisys Scanners.
  • Free Software Update - You will be provided a 1 Year Free software update online for the Autel MS909EV.(Note: Only for US!)
  • Bi-directional Control, All System Diagnostics, VAG Guided Functions, Uncover Hidden Features.
  • Pre & Post Scan, Built-in AutoAuth Service, Access 2018+ FCA SGW Cars, AutoVIN, Scan VIN/Plate, etc.

Do you have the appropriate tools for repairing your EV?

The popularity of electric vehicles is rapidly increasing, and while they offer unique benefits, they can still experience issues requiring diagnosis and repair.

Autel's diagnostic tools have kept pace with evolving EV technology, and the Autel MaxiSys MS909EV is a cutting-edge scan tool that exceeds other professional EV scanners on the market, such as the Snap-On Pass-Thru Pro IV and Pad II AE. The Autel MaxiSYS MS909EV, acting as the MaxiSYS Ultra EV, accurately diagnoses and troubleshoots various components of electric and hybrid vehicles, including the battery management system, electric motor, and charging system. This reduces downtime, repair costs, and extends the life of EV vehicles, representing a game-changing diagnostic tool for all cars/vehicles.

Worldwide Electric Vehicle Coverage

Autel Maxisys MS909EV functions as Maxisys Ultra EV, can accurately diagnoses and troubleshoots various components of electric and hybrid vehicles.

    • For HV System Diagnostics:

This MS909EV not only supports many gas and diesel vehicles, but also compatible with compatible with LEXUS, Buick, Tesla, Ford, Chevrolet, Honda, GMC, Cadillac, BMW, VW, Renault, KIA, Hyundai, Audi, Nissan, Skoda, MINI, TOYOTA, Mercedes-Benz, Volvo, Porsche, Buick, BYD, FAW Audi, Chevrolet, etc.

    • For out-of-vehicle Battery Pack Analysis

Compatible with BMW, Ford, BYD, GACMotor, Geely, GM, GreatWall, Honda, Hyundai, Nissan, Renault, Saicmg, SGMW, Tesla, Toyota, VW, ChangAn, etc.

Maxisys MS909EV Complete HV System Diagnostics & Battery Pack Analysis

HV System Block Diagram and battery pack offline diagnostics

OE-Level High-Voltage System Diagnostics

When it comes to accessing high-voltage systems found exclusively in HYBRIDs, PHEVs, and BEVs, traditional OBD I and II diagnostic scanners are inadequate. They lack the ability to retrieve detailed information on every module of the battery pack, identify faults, or diagnose electrical control equipment in EVs.

The Autel MS909EV ULTRAEV scanner offers high-voltage system diagnostics, allowing you to read and clear DTCs, live data, and run active tests on an EV's exclusive high-voltage system just like a dealership EV scan tool. This is critical for complex troubleshooting of new energy vehicles.

Advanced HV System Block Diagram

Are you struggling with electric vehicle diagnostics and lacking sufficient knowledge? Are you spending a lot of time searching for information on HV circuit diagrams and component locations for new EV systems?

If so, the Autel MS909EV car computer tablet can help you tackle these challenges.

  • The MS909EV provides a comprehensive overview of the entire HV system structure and identifies the location of faulty parts.
  • It contains essential information on related lines and plugs with detailed tips, and allows you to zoom in/out on specific parts. The tool also highlights component-related lines and automatically locates components when searched, making it easier to read.
  • With MS909EV, you'll have the support of operating guidance that is well-explained using text, graphics, and training videos to ensure you can perform secured and proper operations.

Out-of-Vehicle Battery Pack Analysis

Once an EV battery has been installed in a vehicle, it can be difficult to determine its working status. Autel MS909's out-of-vehicle battery pack analysis can be very helpful in this regard.

  • MS909EV features an easy gauge-mode interface that displays the State of Charge (SOC) and State of Health (SOH) of the battery pack, along with other important data such as voltage, current, and temperature for easy comprehension of complex EV battery information.
  • The tool provides maintenance recommendations, repair tips, and heads up, so you won't need to surf the internet for references.
  • MS909EV also clearly shows each battery module's exact location, ensuring that every installation is performed with precision and care.

It should be noted that MS909EV is an updated version of MaxiSYS MS909, MS919, Elite II, and MS908S PRO, with the newest EVDiag Kit and complete EV diagnostic capabilities.

Powerful Intelligent Diagnostics & Topology Mapping 2.0

MS909EV Intelligent Diagnostics and topology 2.0

Enhanced Topology Map 2.0: See More, Operate Less

This Autel Maxisys MS909EV offers a visual representation of relationships elements within a communications network for you.

  • Instantaneously get a glance of crucial information such as the number of systems, scanned systems, and corresponding scan results
  • Directly access the current status of each module, including the presence and number of DTCs.
  • Filter out healthy and faulty systems with distinct colors for easy analysis.
  • Systematically present the communication structure between each module.
  • Support over 50 leading car brands, including but not limited to BMW, Ford, Audi, Chrysler, Nissan, Honda, Toyota, Lexus, Land Rover, Jaguar, Benz, VW and More

Intelligent Diagnostics: One-Stop Solution for DTCs

This smart diagnostic scanner MS909EV has gathered all essential instructions for obstacles that you may encounter throughout the diagnostic procedure, and artfully arranged them into 5 comprehensive sections.

  • Technical Services Bulletins: Shows you the car manufactures' DTC-related recalls and OEM campaigns, providing up-to-date information on which auto parts are affected and require a recall.
  • DTC analysis: Provides the comprehensive analysis of trouble codes, including the explanation of the reasons for these faults, their potential impact, and available solutions.
  • Repair Assist: The comprehensive analysis of trouble codes, including the explanation of the reasons for these faults, their potential impact, and available solutions. All procedures are verified by professionals.
  • Repair Tip: Present a variety of diagnostics covering the information you need to clear faults, and provide repair steps in both text and video format for your ease of use.
  • Relevant Cases: You can access real-world repair processes relevant to specific vehicles and faults, based on millions of successful repairs.

MS909EV Advanced ECU Programming & ECU Coding

MS909EV ECU Programming and Coding

Advanced ECU Programming for Benz & BMW

Specially for Benz:

  • Post-Programming Processing Functions
  • Programming Restoration
  • Synchronization Coding Function
  • Transmission Calibration Data Backup & Restoration
  • Implicit Coding: Current Value & Target Value
  • SCN Coding Based on Big Data

Specially for BMW:

  • Entertainment System HTTP Programming
  • High Voltage System Programming
  • Personalized Data Backup
  • Programming History
  • Automatic Calculation Programming

ECU Coding for Exploring More Possibility on your Vehicle

Change replaced model and code into vehicle ECU modules via modify custom parameter value.

  • Online / Offline ECU Coding
  • Component Matching
  • Refresh Hidden Functions
  • Disable Annoying Features
  • Programmed Module Installation
  • Enhance Vehicle Performance

Note: ECU Programming just for Specific BENz and BMW, and ECU Coding for Benz, BMW, Audi, Porsche, VW etc.

MS909EV 40+ Daily Reset Service for 150 Car Makes

Autel MaxiSys MS909EV for professional mechanics has been designed with 40+ commonly-used service functions, surpassing the number found in many other Autel MaxiSys scanners.

  • Commonly Used Reset Functions for Fast Maintenance or Repairs:

Oil Reset, EPB, BMS, ABS Bleed, TPMS, Airbag Reset, DPF Reg, IMMO Service, Injector Coding, SAS Calibration, Suspension Calibration, Throttle Adaption, ABS/SRS, Gear Learning, Sunroof Initialization, Seats Calibration, Headlight Matching, A/F Setting, WIN DR Roof, Odometer, CHG Tire Size, Cylinder, Turbocharging, Limit, Trans Adaption.

  • Advanced Functions for Different Vehicle Models:

Neutral Gear Position Learning, Torque Sensor Adjustment, Signal Check, Yaw Rate Sensor (YRS) Learn, Clutch Pedal Position Learn, Cylinder Power Balance, Component Matching, Stop/Start Reset, Transport Mode, Auto-Door Lock, etc.

Note: Autel Maxisys MS909EV is not universal for all vehicles, please send us VIN for a compatible check.

MS909EV 40+ Services

MS909EV 10+ Extensive Functions

FCA AutoAuth After 2018 Cars

This Autel scanner MS909EV can be the licensed diagnostic tool to get diagnostic access to FCA SGW-equipped cars.

AutoVIN & Scan VIN/Plate

This Autel MaxiSys MS909EV car scanner has a smart AutoVIN option that can automatically read and store a vehicle's VIN number.

Bi-Directional Control

Also called active test. This Autel scan tool allows you to activate or test various mechanical components on demand.

All System Diagnostics

This MS909EV will help you interface with the entire vehicle network, to detect a problem, locate the faulty source precisely.

VAG Guided Functions

Help you easily navigate the steps required for matching, calibration, and basic settings on VAG Group and Bentley vehicles by simply following the provided guidance.

Unlock Hidden Functions

You can have a personalized driving experience customized to your own tastes, like open/close hundreds of car comfort functions, and code the way that your car's welcome lights brighten up.

ms909ev extensive functions

Maxisys MS909EV Package List

Gain More Business - Click to Buy Extra Tesla Diagnostic Cables

  • 1x MS909EV Main Unit
  • 1x MaxiFlash VCI
  • 1x EVDiag Box
  • 1x USB to Ethernet Adapter
  • 1x AC/DC Adapter(12V)
  • 2x Spare Fuse(6x30mm)
  • 1x Main Cable V2.0
  • 1x EVDiag Box Main Cable BPTC0001/01
  • 1x Clamp Cable
  • 1x USB 2.0 Cable V2
  • 1x Soft Cloth
  • 1x Adapter BPTC0101/01
  • 1x Adapter BPTC0102/01
  • 1x Adapter BPTC0103/01
  • 1x Adapter BPTC0201/01
  • 1x Adapter BPTC0202/01
  • 1x Adapter BPTC0203/01
  • 1x Adapter BPTC0204/01
  • 1x Adapter BPTC0205/01
  • 1x Adapter BPTC1101/01
  • 1x Adapter BPTC1102/01
  • 1x DB25 Snake Cable BPTJ0001/01
  • 6x Breakout Lead 1
  • 6x Breakout Lead 2
  • 6x Breakout Lead 3
  • 6x Breakout Lead 4
  • 3x Breakout Lead Extension Cord
  • 4x Dual Banana Plug
  • 1x Auxiliary Power Outlet Adapter
  • 1x Quick Reference Guide
  • 1x Packing List
  • 1x Carrying Case(687x170x470mm)
MS909EV Package List

Maxisys MS909EV Specifications

Operating System Android 10.0
Processor

Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)

Memory 4GB RAM & 128GB On-board Memory
Display 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity
  • Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO)

  • BT V5.0 + BR/EDR

  • GPS

  • USB 2.0 (2 USB TYPE-A ports and a Mini USB port)

  • HDMI 2.0

  • SD Card (Support up to 256GB)


Camera
  • Rear: 16 Megapixel, Autofocus with Flashlight

  • Front: 16 Megapixel

Sensors

Gravity Accelerometer, Ambient Light Sensor (ALS)

Audio Input/Output
  • Microphone

  • Dual Speakers

  • 3-Band 3.5 mm stereo/standard headset jac

Power and Battery
  • 15000mAH 3.8V lithium-polymer battery

  • Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C

Input Voltage 12V/3A Adapter
Operating Temperature 0 to 50°C (32 to 122°F)
Storage Temperature -20 to 60°C (-4 to 140°F)
Dimensions(W x H x D) 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight 1.66kg (3.66 lb.)
Protocols DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

MS909EV Comparison Chart

Model

MS909EV

Ultra EV

Hardware

Connection

Bluetooth MaxiFlash VCI

Bluetooth MaxiFlash VCMI

Screen

9.7inch touchscreen

12.9inch touchscreen

Battery

15,000mAh

18,000mAh

Processor

2.2GHz+1.8GHz
octa-core

2.2GHz+1.8GHz
octa-core

Memory

128GB SSD/ 4GB RAM

256GB SSD/ 4GB RAM

Camera

16MP rear/16MP front

16MP rear/5MP front

Docking Station


Included

EVDiag Box

Included

Included

Software

Operating System

Android 10.0

Android 7.0

Automatic Detection

Auto-VIN/Auto-Scan
Scan VIN/Plate Scan

Auto-VIN/Auto-Scan
Scan VIN/Plate Scan

Secure Gateway Access

Authorized FCA Access
With AutoAuth account

Authorized FCA Access

With AutoAuth account

Diesel PM

Reset diesel emissions

Light&medium duty vehicles

Reset diesel emissions

Light&medium duty vehicles

High-voltage System Diagnostics

Diagrams of high-voltage system block

Diagrams of high-voltage system block

Battery Pack Diagnostics

SOC and SOH analysis

SOC and SOH analysis

Component Activations

Bi-directional control

Bi-directional control

Enhanced Functions

Coding&adaptations

Coding&adaptations

Repair Assist

Guided procedures with DTC analysis

& fault code solutions

Guided procedures with DTC analysis

& fault code solutions

Topology Module Mapping

Color coded all system status screen on supported vehicles

Color coded all system status screen on supported vehicles

Relevant Cases

DTC troubleshooting

DTC troubleshooting

Technical Service Bulletins

Available on select vehicles

Available on select vehicles

Oscilloscope


VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester

MS909EV Product guides and documents

MS909EV User Manual (PDF)
MS909EV Quick Guide (PDF)

Autel MS909EV Software Update

Autel MS909EV Software Update

Shipping


Free Shipping on All Orders Without Any Tax.

All orders are processed and shipped out within 24 hours of being placed (excluding weekends and holidays). Once your order has been shipped out, we will provide you with a tracking number so that you can easily track your package and stay updated on its delivery status. With this tracking number, you'll be able to see the expected delivery date and have peace of mind knowing exactly when your package will arrive. Please allow 24-48 hours for the tracking information to update.

Delivered within 3 - 5 Business Days by UPS, USPS, Fedex, or DHL Ship from New Jersey or California, United States

For more details of the Shipping, please visit Shipping Policy

Returns


30 calendar days from the date you received it

If, for any reason, you are not satisfied with your purchase or if the product does not meet your expectations, you can return it within 30 calendar days from the date you received it. To qualify for a refund, please ensure that the product is returned in its original packaging along with the original purchase receipt.

Our team will be glad to assist you with the return process and issue a refund once we have received the returned product. Customer satisfaction is our top priority, and we strive to ensure that all of our customers are happy with their purchases from diagmart.com.

For more details of Returns, please visit Return & Refund Policy

Waranty


one (1) year limited warranty

At DiagMart, we stand behind the quality of our products and offer a one (1) year limited warranty on all products sold exclusively on diagmart.com.

This limited warranty provides coverage for defective workmanship or materials in your product and is your exclusive remedy. If your product is found to be defective during the warranty period, we will repair or replace it free of charge.

Please note that this warranty only applies to products purchased directly from diagmart.com and does not cover damage caused by misuse, accidents, or normal wear and tear.

We are committed to ensuring our customers have a positive experience with our products and services. If you have any questions or concerns about the warranty or need assistance with a warranty claim, please don't hesitate to contact our customer support team.

Q:Where are my orders shipped from?


A:Your order will be shipped from California or New York. If you want it to be shipped from a specific place, please let us know in advanced.


Q: If the one year free update expires, will it stop working?


A:You can still use your tool as usual even the one year update expires. It will not impact the normal usage of the tool. But if you need the newest vehicle coverage, it's better to update.


Q: How do I know whether this tool cover the vehicles I want?


A:Generally, our tools are compatible with all the OBD2 vehicles, but functions may differ the vehicle makes and models. Please contact us and provide the VIN and vehicle make and model so that we can tell you the functions it supports.


Q: Can I return the item if I realize that it does not fit my purpose?


A:Yes, you can return the item within 30 days from the date you receive the unit.

During the subscription, you will be able to enjoy the latest released function by Autel and can cover the latest vehicle makes and models. If your device expires, you can still use the scanner's all functions without any issues, but we recommend you renew the software to enjoy the latest released function and expand coverage for the latest vehicle makes and models.

Unleash Exclusive Rights with Upgrades

Exclusive Function with software Upgrades

TOOL FUNCTION UPGRADES

Get the latest function from Autel

Exclusive Vehicle Coverage with software Upgrades

LATEST VEHICLE COVERAGE

Expanded coverage for the latest vehicle makes and models

Extra 1YR Update MSRP
Manufacturer's Suggested Retail Price
Our Price Where to buy
MaxiCheck MX808 $124.50 $80.00 Shop Now
MaxiCheck MX808S $125.00 $112.00 Shop Now
MaxiCheck MX808TS $295.00 $210.00 Shop Now
MaxiCheck MX808S-TS $245.00 $220.00 Shop Now
MaxiCOM MK808 $124.50 $88.00 Shop Now
MaxiCOM MK808BT $150.00 $104.00 Shop Now
MaxiCOM MK808BT Pro $150.00 $135.00 Shop Now
MaxiCOM MK808TS $295.00 $210.00 Shop Now
MaxiPRO MP808 $349.50 $290.00 Shop Now
MaxiPRO MP808S $245.00 $220.00 Shop Now
MaxiPRO MP808S Kit $245.00 $220.00 Shop Now
MaxiPRO MP808BT $349.50 $299.00 Shop Now
MaxiPRO MP808BT Pro $255.00 $229.00 Shop Now
MaxiPRO MP808TS $495.00 $449.00 Shop Now
MaxiDAS DS808 $349.50 $245.00 Shop Now
MaxiDAS DS808K $349.50 $245.00 Shop Now
MaxiDAS DS808S-BT $255.00 $229.00 Shop Now
MaxiDAS DS808S-TS $265.00 $245.00 Shop Now
MaxiSys Mini MS905 $699.00 $529.00 Shop Now
MaxiSys MS906 $495.00 $259.00 Shop Now
MaxiSys MS906S $395.00 $329.00 Shop Now
MaxiSys MS906BT $695.00 $375.00 Shop Now
MaxiSys MS906 Pro $595.00 $460.00 Shop Now
MaxiSys MS906TS $795.00 $640.00 Shop Now
MaxiSys MS906 Pro-TS $695.00 $625.00 Shop Now
MaxiCOM MK906BT $695.00 $435.00 Shop Now
MaxiCOM MK906 Pro $495.00 $439.00 Shop Now
MaxiCOM MK906 Pro-TS $595.00 $529.00 Shop Now
MaxiCOM MK908 $895.00 $626.00 Shop Now
MaxiCOM MK908 II $895.00 $749.00 Shop Now
MaxiCOM MK908 Pro $1,295.00 $726.00 Shop Now
MaxiCOM MK908 Pro II $1,295.00 $759.00 Shop Now
MaxiSys MS908 $895.00 $650.00 Shop Now
MaxiSys MS908 Pro $1,295.00 $795.00 Shop Now
MaxiSys MS908S Pro $1,295.00 $795.00 Shop Now
MaxiSys MS908S Pro II $1,295.00 $829.00 Shop Now
MaxiSys CV $1,295.00 $959.00 Shop Now
MaxiSys MS909 $1,295.00 $659.00 Shop Now
MaxiSys MS919 $1,495.00 $899.00 Shop Now
MaxiSys Ultra $1,695.00 $899.00 Shop Now
MaxiSys Ultra EV $1,695.00 $1,299.00 Shop Now
MaxiSys Elite $1,295.00 $600.00 Shop Now
MaxiSys Elite II $1,295.00 $600.00 Shop Now
MaxiSys Elite II Pro $1,295.00 $859.00 Shop Now
MaxiCOM Ultra Lite/ Ultra Lite S $1,235.00 $999.00 Shop Now
MaxiIM IM508 $399.00 $245.00 Shop Now
MaxiIM IM508S $399.00 $299.00 Shop Now
MaxiIM IM608 $895.00 $600.00 Shop Now
MaxiIM IM608 Pro $895.00 $600.00 Shop Now
MaxiIM IM608ProII/IM608SII/IM608II $895.00 $805.00 Shop Now

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
You have successfully subscribed!
This email has been registered
