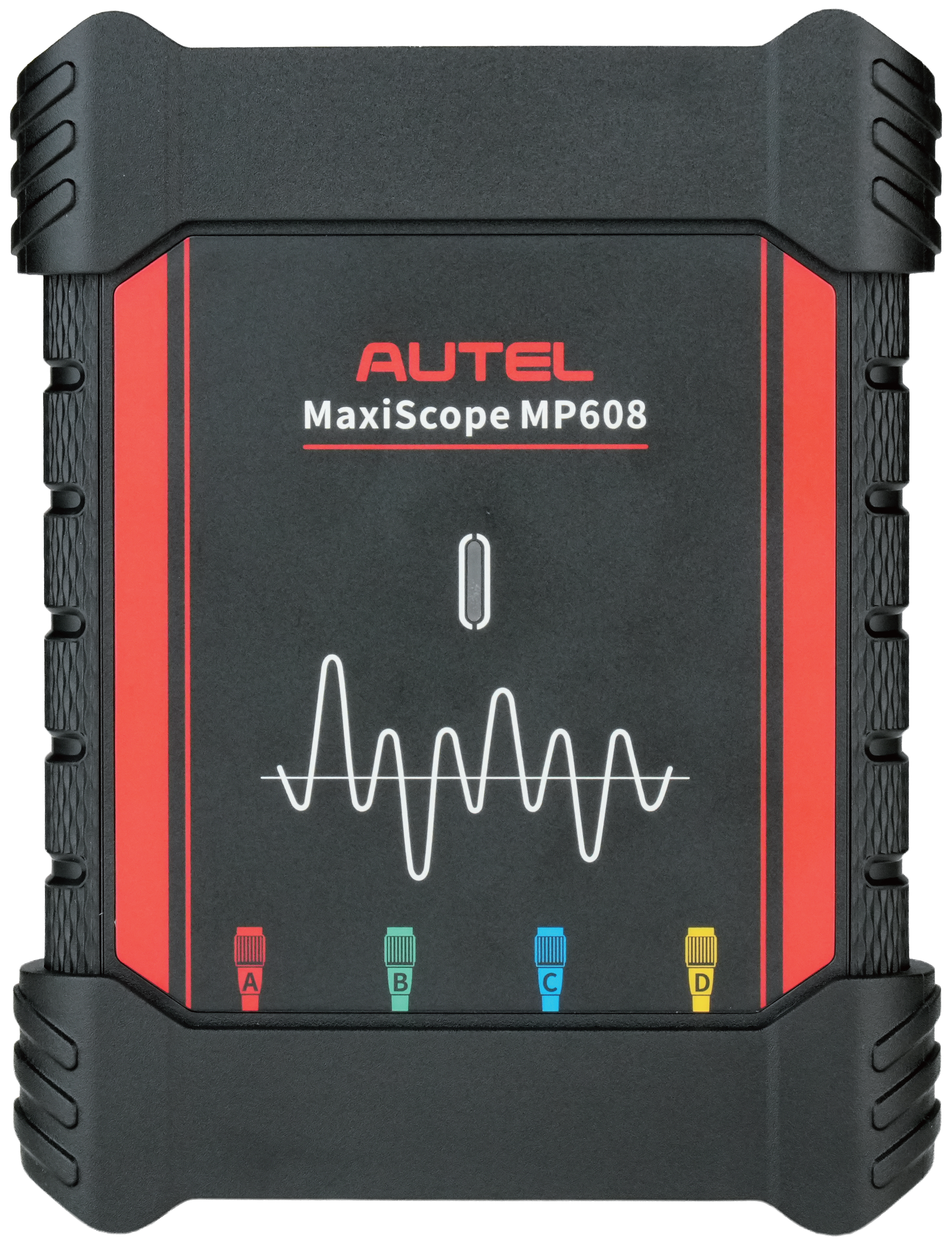

Autel MaxiScope MP608 4-Channel Oscilloscope
The Autel MaxiScope MP608 is a portable, USB-powered, 4-channel automotive oscilloscope that transforms your Autel next-generation MaxiSys tablet into a professional diagnostic tool. With 12-bit vertical resolution, one-click setup, and support for modern protocols like CAN FD/FlexRay, the Autel MaxiScope MP608 delivers precise waveform analysis from an intuitive interface.
Compatible with Autel tablet scanners
The Autel Tablets compatible with the MP608 are MaxiSys MS909S2/ MS909/ MS909EV/ MS909CV/ MS906 MAX/ MS908S Pro II/ MS906 Pro/ MS906 Pro-TS/ Elite II Pro, MaxiCOM Ultra Lite S, MaxiIM IM608S II/ IM608 Pro II
Autel MaxiScope MP608 Features
1. Professional Diagnostics - Capture More. Diagnose with Confidence.
- ±1% Measurement Accuracy
- 12-Bit Vertical Resolution
- Trigger Actions for Intermittent Fault Capture
- Advanced Measurement Event Table
2. Simplified Operation - Make Advanced Diagnostics Accessible.
- AI-Generated Math Channel Formulas
- AI-Generated Probe Parameters
- Built-in Automotive Case Library
3. Advanced Visualization - See More. Understand Faster.
- Oscilloscope Mode
- Spectrum Mode
- XY Mode
- Simultaneous Multi-View Display
4. Connected Workflow - Turn Every Test into a Valuable Asset.
- Work-Order-Based Management
- Cloud Synchronization
- Waveform Notes & Tags
5. Tablet1 Mobility, PC-Level Diagnostics - Work Anywhere. Analyze Everywhere.
- Tablet & PC Support
- Mobile Testing
- Advanced PC Analysis
Specifications
| Item | Description |
|---|---|
| Channels | 4 |
| Bandwidth | 200MHz |
| Maximum Sample Rate |
* MS/s = mega samples per second 1) Select arbitrary one channel, the maximum sample rate is 80 MS/s. 2) Select two channels (AC, BC, AD, or BD), the maximum sample rate is also 80 MS/s. 3) Select two channels (AB/CD) or more than three channels, the maximum sample rate is 20 MS/s. |
| Input Ranges (Full Scale) | ±50 mV to ±200 V |
| Sensitivity | 10 mV/div to 40 V/div |
| Input Coupling | AC/DC |
| Input Impedance | 1 MΩ in parallel with 25 pF |
| Vertical Resolution | 12 bits |
| Buffer Memory | 32M samples shared among active channels |
| Time Base Ranges | 100 ns/div to 1000 s/div |
| Connection | USB 2.0 |
| DC Accuracy | ±1% |
| Storage Humidity Range | 5 to 95 % RH, non-condensing |

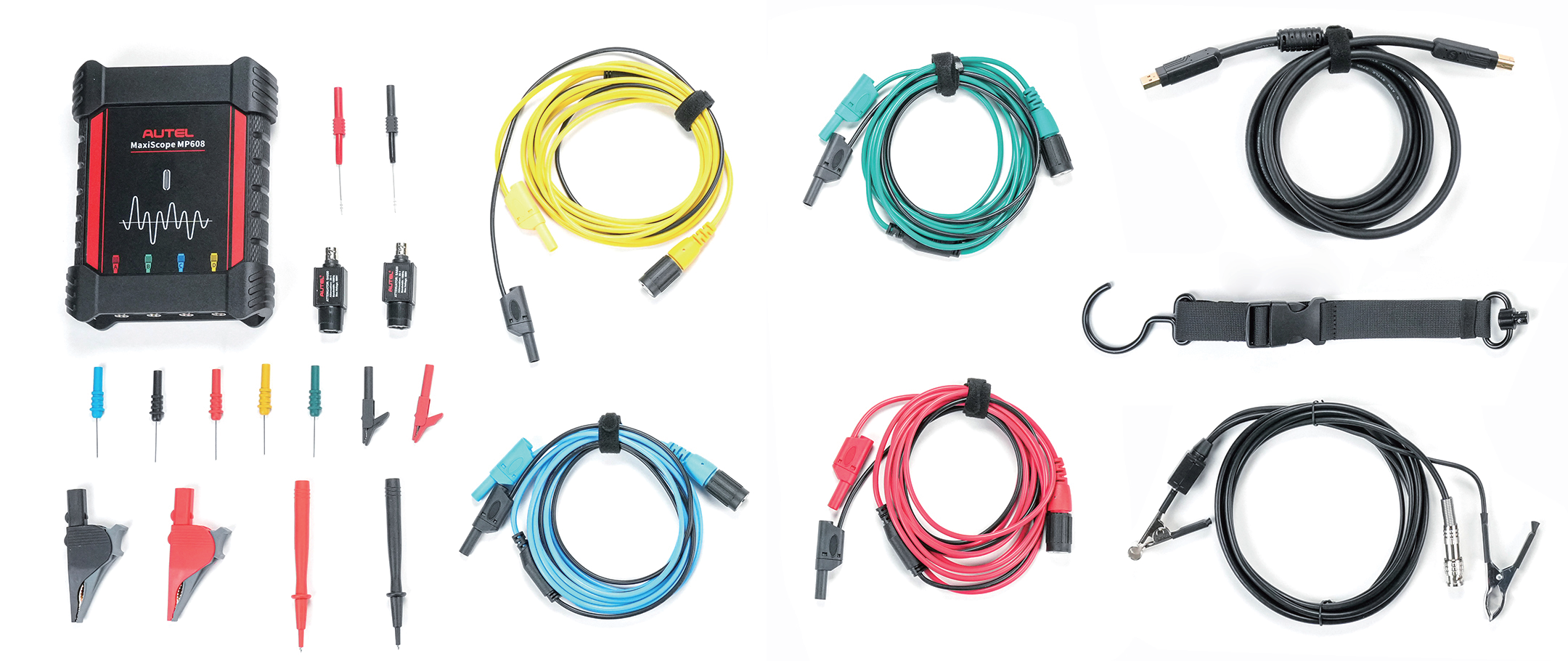

Packing List
- MP608 Main Unit
- Secondary Ignition Pickup
- USB 2.0 Cable V2
- 2PCS Attenuator 20:1
- 1x2 PCS Large Dolphin Clip - Red/Black
- 1x2 PCS Small Alligator Clip - Red/Black
- 1x4 PCS Scope Test Lead
- 1x2 PCS Multimeter Probe - Red/Black
- 1x5 PCS Back-pinning Probe - Red/Green/Blue/Yellow/Black
- 1x2 PCS Flexible Back-pinning Probe - Red/Black
Product Guides & Downloads
