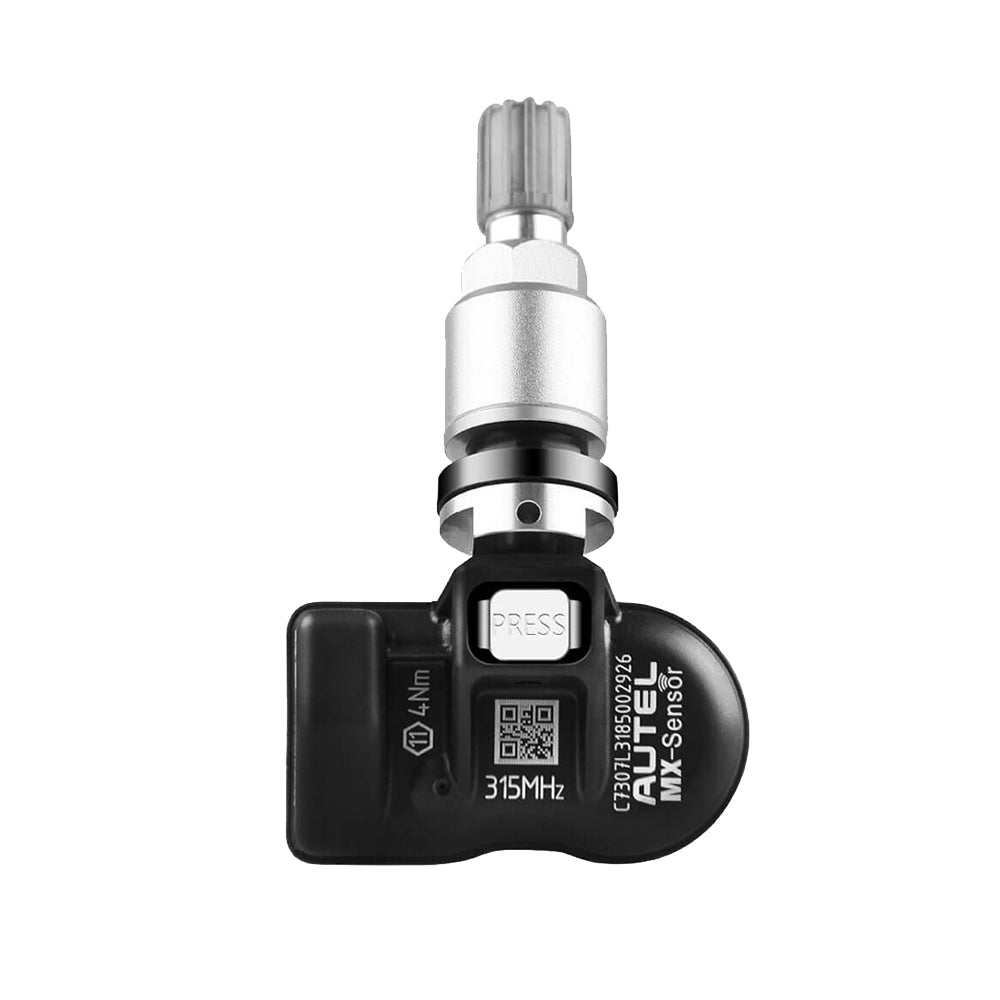

MX-Sensor 315MHz Autel Clamp-in TPMS Sensor Universial Tire Pressure Sensor Tool
Autel MX-Sensors 315MHz
Autel 315MHz Mx-sensors are affordable and easy to use programmable universal TPMS sensors. Autel MaxiTPMS tools can wirelessly activate, diagnose, program, and relearn all the Autel MX-Sensors. Autel guarantees that the 315Mhz sensor is free from material and manufacturing defects for a period of twenty-four (24) months or for 24,000 miles, whichever comes first
Autel Value Advantage
- Covering 98% of all OE sensors on the market
- Wireless sensor programming with Autel TPMS service tools
- 100% ID clone-able sensor with no re-learn required
- Independently tested and certified to meet SAE standard
Autel MX-Sensor 315MHz Features:
- Built to perform like OE sensor, in terms of signal, durability and functionality;
- Automotive battery grade to meet severe weather conditions;
- High-precision air valve to prevent air leakage;
- Replaceable aluminum valve stem is anodized for corrosion resistance;
- Robust clamp-in pivoting stem design allows for 0-35 degree angle adjustment to fit all types of wheels;
- Fast and simple assembly onto any wheels.
Autel 315MHz Sensor Works with Autel MaxiTPMS TS501 / Autel MaxiTPMS TS508K
How does Autel MX-Sensor Work?
315Mhz MX-Sensors Specification:
| Battery Life | ≥5 years |
| Operating Temperature | -40°C to +125°C |
| Storage Temperature | -40°C to +150°C |
| Operating Humidity | 90% |
| Operating Frequency | 315 MHz |
| Pressure Monitoring Range | 100 to 900 kPa |
| Pressure Reading Accuracy | ±10 kPa |
| Temperature Reading Range | ±10 kPa |
| Pressure Reading Accuracy | ±10 kPa |
| Pressure Reading Accuracy | -40°C to +125°C |
| Temperature Reading Accuracy | ±5°C |
| G Sensor Reading Accuracy | ±15% |
| Transmission Power | 5-8 dBm |
| Battery | 3.0 V |
| Dimensions (W x H x D) | 55.1 mm x 29.4 mm x 21.8 mm (Clamp-in Sensor) |
| Weight (Without Valve) | 18.5 g (Clamp-in Sensor) |
| Package Includes | MX-Sensor 315MHz (Quantity Optional) |
