MaxiSys MS908S Pro
Upgrade Version of Maxisys MS908, MS908 Pro and MS908S.
The MS908S Pro Diagnostic Platform bases on the revolutionary Android multitasking operating system, utilizes the powerful Cortex A7+A15 six-core processor, and equips with 9.7-inch LED capacitive touch screen. Supporting J2534 ECU Programming Device is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues. MS908S Pro is an ideal tool for a truly trouble-free diagnosis of a maintenance plant by quickly, efficiently and effectively diagnosing automotive faults, managing customer data, and standardizing business processes.
Autel MS908S Pro Features:
Hardware
- Extraordinarily powerful Cortex A7+A15 six-core processor
- 9.7” 2048x1536 LED-backlit glossy Multi-Touch capacitive display with IPS technology
- Internal reliable 64GB On-board Memory for better performance
- Built-in 8-megapixel rear camera with autofocus and flashlight
- The VCI connects to the main unit wirelessly with up to 70 meters working range
- 802.11 a/b/g/n/ac Wi-Fi to access your favorite web resources
- Unique ergonomic design with rubberized outer protection and a rugged internal housing
- Open source Android Operating System for fast boot-up and multitasking
Functions
- Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
- Exceptional OE-Level system coverage for all electronic systems
- Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc
- Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
- Built-in rechargeable lithium-polymer battery for up to 7.5 hours of continuous operation
- Equip with J2534 ECU Programming Device for replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues
Service
- 1 Year Free Update Online & 1-year Free Warranty
- Warranty extended with each update subscription renewal
Relate: Maixsys Elite VS MS908S Pro
Support for Maxisys MS908SP:
Vehicle List: Audi, Benz, BMW, Dacia, Eu Ford, Ford, Landrover, Mini, Opel, Peugeot, Renault, Seat, Skoda, VW, Volvo, Smart, Jaguar, Benz Sprinter, Saab, Fiat, Abarth, Lancia, Alfa Romeo, Vauxhall, Maybach, Bentley, Bugatti, Porsche, GM, Chrysler, Ford, Suzuki, Kia, Daewoo, Isuzu, Toyota, Subaru, Scion, Nissan, Mitsubishi, Lexus, Infiniti, Hyundai, Honda, Accura, Mazda.etc 80+ Vehicle Makes. Detailed coverage list (select MS908SPRO from the drop-down)
Autel MS908S Pro support vehicle includes MS908, MS908P and MS908S.
Note: Autel Maxisys(MS908) and MS908 Pro have been stopped producing, still on sale is old stock.
Maxisys MS908S Pro Specification:
| Operating System | AndroidTM 4.4.2, KitKat |
| Processor | Samsung Exynos Six-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15) |
| Memory | 2GB RAM & 64GB On-board Memory |
| Display | 9.7 inch LED capacitive touch screen with 1024x768 resolution |
| Connectivity | Wi-Fi (802.11 a/b/g/n/ac) USB: 2.0 BT v.2.1 + EDR SD Card (Support up to 32GB) HDMI |
| Camera (rear) | 8.0 Megapixel, AF with Flashlight |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery | 11000 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C |
| Input Voltage | 12 V (9-24 V) |
| Power Consumption | 6.5 W |
| Operating Temp. | 0 to 50°C (32 to 122°F) |
| Storage Temp. | -20 to 60°C (-4 to 140°F) |
| Dimensions (WxHxD) | 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”) |
| Weight | NW: 1.42 kg (3.13 lb.) GW: 8.052 kg (17.75 lb.) |

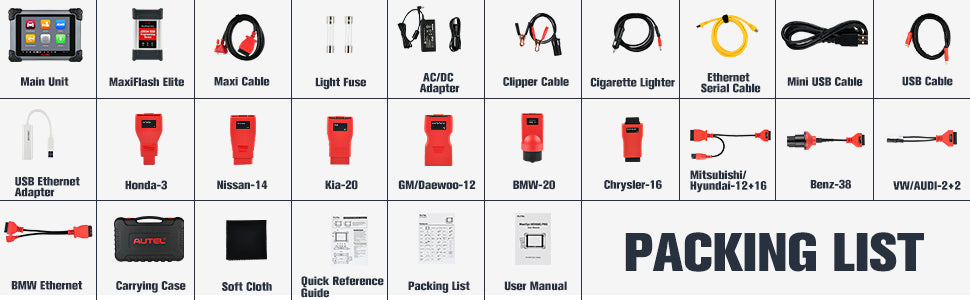

Maxisys MS908SP Package List:
- MS908SP Main Unit
- USB Ethernet Adapter
- Standard 2.0 USB Cable
- BMW Ethernet Cable
- Main Cable – 1.5 m in length
- Mini USB Cable
- Ethernet Serial Cable
- AC/DC External Power Adapter
- Clipper Cable
- Lighter Fuse
- Cigarette Lighter
- Adapter for Chrysler-16 (America Only)
- Adapter for GM/Daewoo-12
- Adapter for PSA-2
- Adapter for Fiat-3
- Adapter for BMW-20
- Adapter for Benz-38
- Adapter for Kia-20
- Adapter for Mitsubishi/Hyundai-12+16
- Adapter for Nissan-14
- Adapter for Honda-3
- Adapter for Benz-14 (for EU only)
- Adapter for VW/AUDI-2+2
