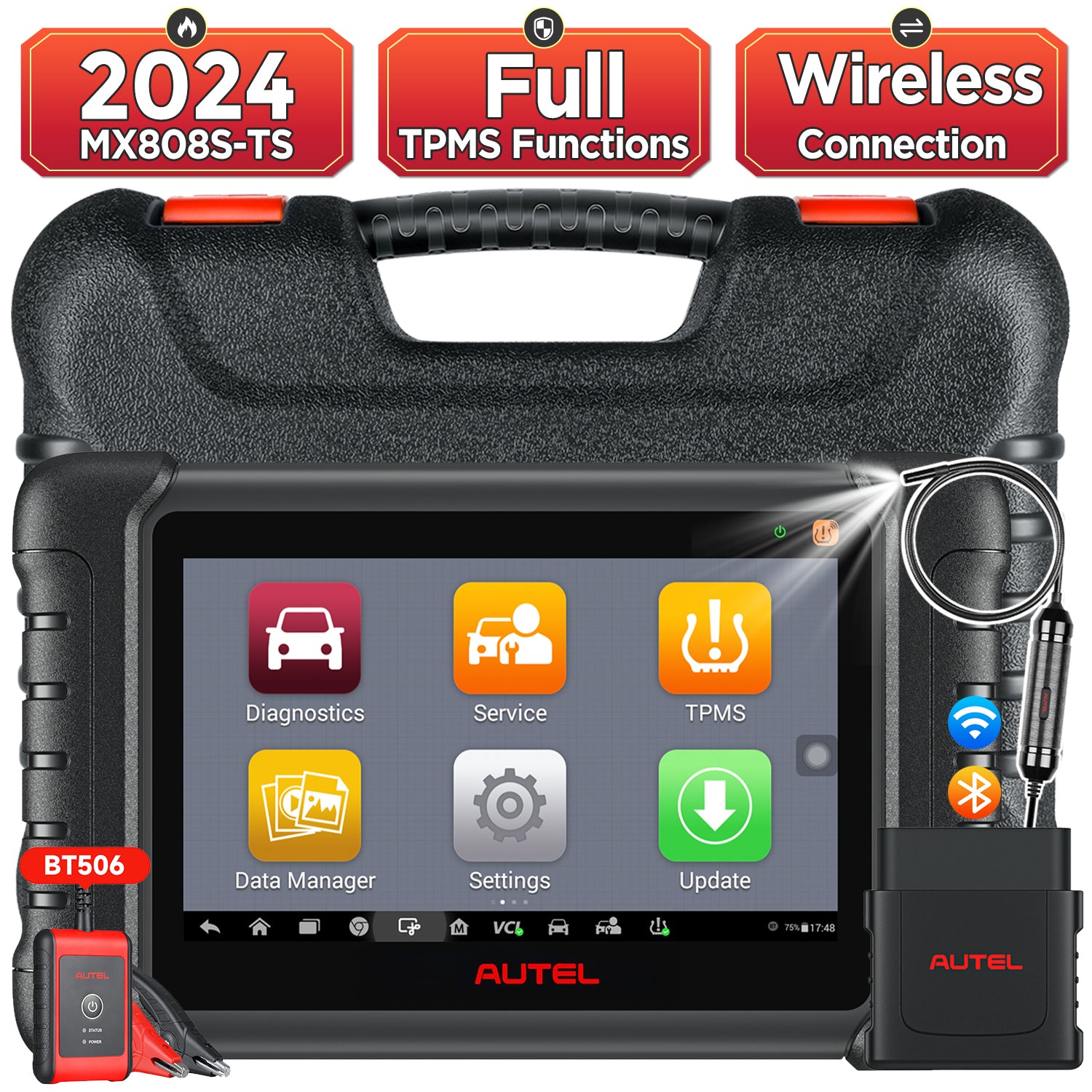

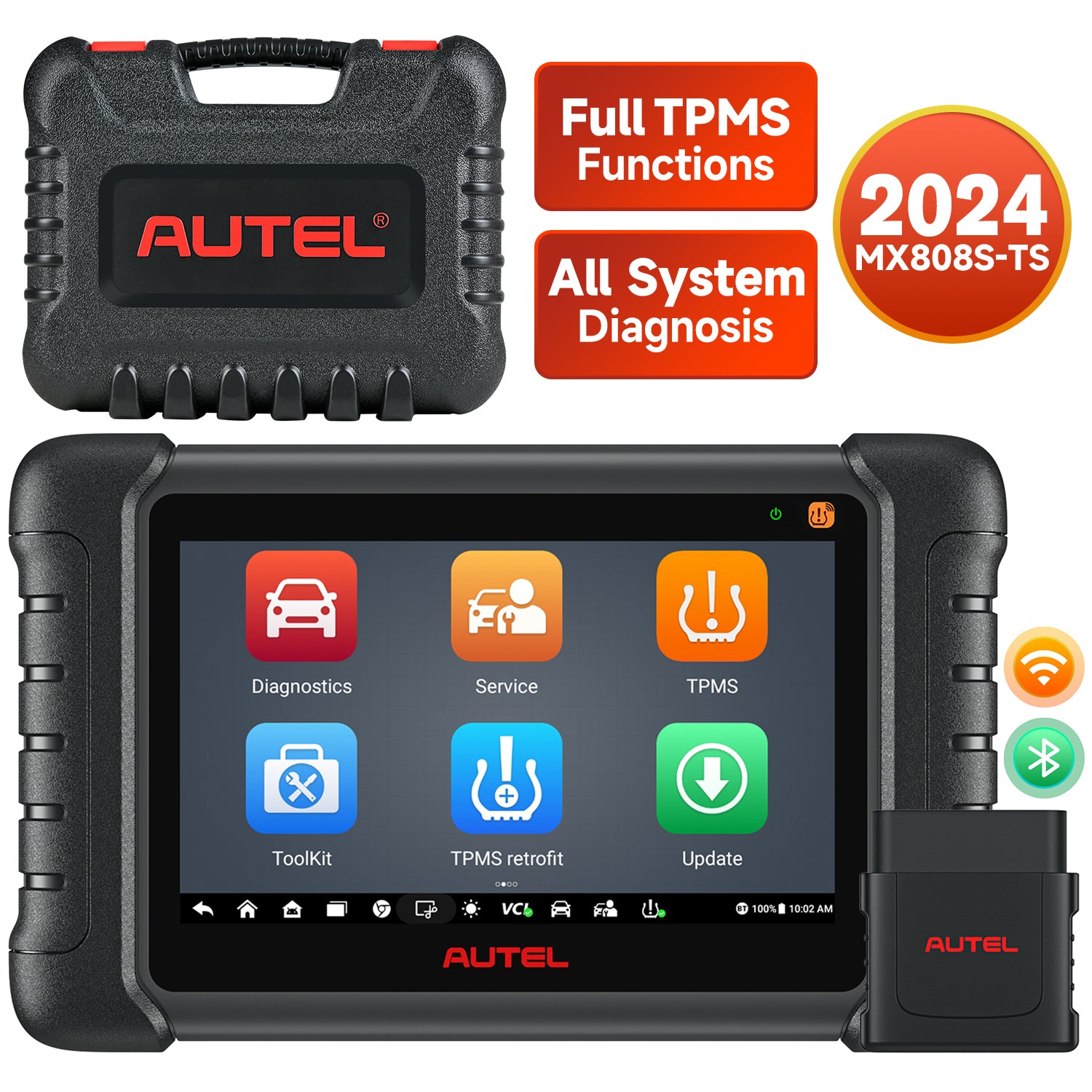

Autel MaxiCheck MX808S-TS Scanner - 2023 Newly Version
Autel MaxiCheck MX808S-TS Scanner is upgraded from MX808 / MX808S, which is a powerful combo of TPMS Tool and Diagnostic Scan Tool. Equipped with Full TPMS and Diagnostics, it performs well both in your vehicle diagnosis and in Complete TPMS Functions. For a workshop or a mechanic, Autel MX808S-TS is really a good choice.
Autel MX808S-TS Scan Tool also has Advanced Hardware, which combines Android 11, 4G & 64G of RAM & ROM, Rockchip RK3566 Processor, 2.4 & 5GHz Wi-Fi, 7-inch 1024x600 Resolution, and 5000mAh Battery.
The Features of Autel MX808S-TS are like followings:
- Powerful Diagnostic Functions
- Bi-Directional Control / Active Test
- 30+ Popular Maintenance Services
- 10+ High-end Functions
- OE-Level All Module Diagnostics
- Work with BT506 for Battery Test
- Work with MV105/MV108 for Endoscope Functions
- No-IP Limitation
- 150+ Brands Worldwide from 1996-2023
- Renault Security Gateway
- Access FCA Vehicles after 2017 via Auto auth
- Comprehensive TPMS Features
- Activate 99% of 315MHZ / 433MHZ TPMS Sensors in the market
- TPMS Diagnostic System
- Autel MX-Sensors Programming
- TPMS Check & Reset & Retrofitting
Autel MaxiCheck MX808S-TS with Powerful TPMS Diagnostic System
MaxiCheck MX808S-TS TPMS Car Diagnostic Tool can perform OE-Level TPMS Diagnostics and find you TPMS-Related DTCS, it features to check the TPMS Module Status: Read/Clear trouble codes from TPMS, read live data to check the module status, turn off the error light. It will also provide an efficient method to quickly and accurately determine the current vehicle's model, year and frequency information, avoiding TPMS matching failure caused by incorrect selection.
1. Program All the Autel MX-Sensors
Autel MaxiCheck MX808S-TS allows you to program the sensor data to the MX-Sensor to replace the broken TPMS tire sensors with low batteries or other problems. There are 2 ways for programming: Copy by OBD and Auto Create 1-16 Sensors.
-
Copy by OBD - By using this function, the scan tool will program the sensor IDs retrieved from the ECU of the test vehicle to the new MX-Sensor.
-
Auto Create 1-16 Sensors - The Auto Create function is used to automatically create a random sensor ID to program a new MX-Sensor. Up to 16 MX-Sensors can be programmed simultaneously.
Note: MX808S-TS can only program Autel Brand MX-Sensors, it can't program any other brand sensors.
2. Activate 99% of 315MHZ / 433MHZ TPMS Sensors
Autel MX808S-TS Full TPMS Scanner will activate 99% of 315MHZ/433MHZ TPMS Sensors in the market. It can activate all know OEM or Autel TPMS sensors to view sensor data, such as sensor ID, tire pressure, tire temperature, sensor battery condition, and sensor position.
3. Relearn 99% of TPMS Sensors
TPMS Expert MX808S-TS supports write the newly programmed sensor IDs into the vehicle ECU for sensor recognition, and there are three ways for relearn: stationary relearn, active relearn, OBD relearn.
-
Stationary Relearn - Stationary relearn requires the vehicle to be in "Learn Mode" and allows the new TPMS sensor IDs to be written into vehicle's ECU via Autel MX808S-TS Tpms scanner without driving a vehicle.
-
Automatic Relearn - An auto-relearn procedure is when a vehicle can learn a single or multiple TPMS sensor IDs without a TPMS relearn tool. The TPMS system will automatically reset itself after a while of driving.
-
OBD Relearn - The OBDII relearn is mostly applied to Asian & European vehicles. An OBDII relearn requires the Autel MX808S-TS TPMS scan tool to write new sensor IDs directly to the vehicle's ECU following step-by-step instructions Relearn has never been so easy
4. Advanced TPMS Retrofit MX808S-TS Exclusive
TPMS retrofit is an advanced function that the other tools can only dream of, can help vehicles without factory-fitted OEM tire pressure module or sensors build everything from scratch, and realize safe tire monitoring and safe driving.
-
Step 1: Back up the original vehicle data
-
Step 2: Code the Autel TPMS module
-
Step 3: Install the Autel TPMS module on the vehicle
-
Step 4: Program the Autel TPMS sensors
-
Step 5: Activate the Autel TPMS sensors or OE sensors
-
Step 6: Relearn the sensor with on-board TPMS module
2023 Newest MX808S-TS with Full Bi-Directional Control / Active Test
In addition to Complete TPMS Functions, the Autel automotive diagnostic scan tool also performs to do bi-directional control / active test. This function allows you to monitor component operation and quickly locate car problems, such as operate mirrors, open/close windows, and the A/C Clutch On/Off.
MX808S-TS with ALL-System Coverage & Full OE-Level Diagnostic
Equipped with all-system diagnostic function, the MX808S-TS scanner is fast to scan all modules & accurately repair cars in the shortest time, including but not limited to read codes, erase codes, live data stream, vehicle info retrieve, and view freeze frame.
Autel MaxiCheck MX808S-TS with 30+ Popular Functions Comprehensive Services to Boost Revenue
With over 30 functions you could ever need, the MaxiCheck MX808S-TS boasts the means to tackle any pesky light that pops up on your dashboard. It'll do it all, from oil change reset to ABS bleeding procedures.
-
Oil Reset Service: It allows you to perform a reset for a new calculation of the Engine Oil Life system once changed the oil.
-
EPB: The service is important in the maintenance of the electronic braking system's safety and efficiency.
-
BMS: The service allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
-
DPF: The service specially works for the Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
-
ABS Bleeding: ABS brake bleeding to get a firm brake pad after air exhaustion.
- Seats, Odometer, Injector, CHG tire size, TEC Learn, Suspension, Throttle, WIN OR ROOF, Lang Change, Headlamp.
- More...
Note: The reset service feature is not available on all models. Pls send VIN and your needs to 👉Contact us👈 to check.
Autel MX808S-TS with Wide Coverage
MX808S-TS car diagnostic scan tool covers 80+ Makes, 150+ Models, 10,000+ Vehicles, and it will keep updating to cover more cars!
Autel MX808S-TS Scanner with Faster Running Speed
- Rockchip RK3566 Cortex-A55(1.8 GHz) CPU: Provide unsurpassed boot-up times
- Improved Android 11 OS: 5X faster operation Speed
- 2.5GHz & 5GHz Dual Wi-Fi: Faster transmission rate
- 5000mAh Rechargeable Battery: Provide sufficient power for 6.5 hours non-stop using time
- 64GB Memory: More vehicle documents & customer data can be saved
Autel MaxiCheck MX8080S-TS with 1-Year Free Update Service
You are provided with 1-year free update service in Diagmart. When the free update expires, you can purchase the update service. Even if you don't update, the device still can be used as normal. After One Year, MX808S-TS Software Subscription Cost $210 USD/Year.
Autel MX8008S-TS Extensive Functions
- Anti-Theft IMMO Service(Basic)
With Key Fob Coding, Autel MX808S-TS scan tool can protect your vehicle from be stolen, enhance your vehicle security levels, such as add and extra key to the vehicle and disable the lost vehicle keys. Key Fob Coding functions is mainly for Asian vehicle with low-grade anti-theft systems and is NOT intended for AUDI, Benz, BMW, or for VW which have advanced IMMO system. MX808S-TS does not support ALL KEY LOST functions. If need it, please go to professional key programming tool.
- More User friendly features to make your diagnostics smarter
- Smart AUTO VIN: One-Click to identify VIN of car
- Smart Auto Scan: One-Click to scan All modules
- Data Logging: A simple, effective way to seek help from Autel support personnel
There's no need to dismantle the FCA cars & diagnose with the 12+t adapter. Just register an "AutoAuth" account on the device and you can pay to diagnose the FCA vehicles after 2017.
- Autel Cloud Service - Cloud Report Management
This is a long-awaited feature for old customers!! With it, you can upload diagnostic reports to Autel Cloud and share reports with your customers through QR Code/email/text message easily, and they can view the reports anytime. Like other cloud space, it is a back garden for your diagnostic reports to help you enhance data centralization, share simply and quickly, reduce memory burden and improve work efficiency.
- Battery Test Capability (Work with BT506)
Autel MaxiCheck MX808S-TS is exclusively equipped with battery test ability, namely, which can work with Autel BT506 battery tester to perform professional cranking/charging system test and In-Vehicle & Out-of Vehicle Battery Test, keeping your vehicle in goog shape for safer driving!
- HD Digital Inspection(Work with MV108/MV105)
Compatible with the MV108 inspection camera for up-close visual inspections in confined areas, like engine cylinders, small parts inspection, spark plug, automotive engine, oil tank inspection, etc without needing for machine disassembly.
- Details-You Concerned - We are always stand behind our products
12-Month Free Updating; 1-Year Warranty; 7*24 customer service; 100% Original Product; Lifetime Tech Support
Autel MaxiCheck MX808S-TS Specifications
| Recommended Use |
Indoor |
| Operating System |
Android 11
|
| Processor |
Rockchip RK3566 Processor |
| Memory |
4GB & 64GB |
| Display |
7-inch LCD capacitive touchscreen with 1024x600 resolution |
| Connectivity |
Mini USB 2.0
USB2.0
Wi-Fi
HDMI Type A
Micro SD card slot(supports up to 32GB) |
| Sensors |
Light sensor for brightness auto adjust |
| Audio input/output |
Input: N/A
Output: buzzer
|
| Power and Battery |
3.7 V/5000 mAh lithium-polymer battery
Charges via 5 VDC power supply |
| Tested Battery Life |
Around 7 hours of continuous use |
| Battery Charging Input |
5V/1.5A |
| Power Consumption |
600 mA(LCD on with default brightness,Wi-Fi on)@3.7 V |
| Operating Temp |
-10to60°C(14to140°F) |
| Storage Temp |
-20to70°C(-4to158°F) |
| Operating Humidity |
5%-95%non-condensing |
| Dimensions(WXHXD) |
270.8mm(10.0)X176.0mm(6.9)x36.0mm(1.4) |
| Net Weight |
885g(2.31|b.) |
| Protocols |
ISO9141-2,ISO14230-2,ISO15765,K/L-Line,Flashing Code, SAE-J1850 VPW,SAE-J1850PWM, ISo11898(Highspeed,Middlespeed,Lowspeed and Singlewire CAN,fault-tolerant CAN), SAE J2610,GM UART UART Echo Byte Protocol, Honda Diag-H Protocol,TP2.0,TP1.6 |
Autel MaxiCheck MX808S-TS Package List
- 1x Main Unit
- 1x VCI Mini
- 1x Power Adapter
- 1x Mini USB Cable
- 1x Mini USB Cable
- 1x Strap
- 1x Quick Reference Guide Packing List
- 1x Soft Cloth
- 1x Carrying Case
Autel MaxiCheck MX808S-TS Comparison Chart
