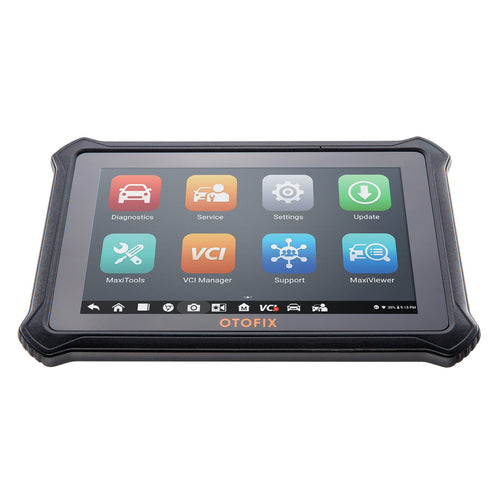

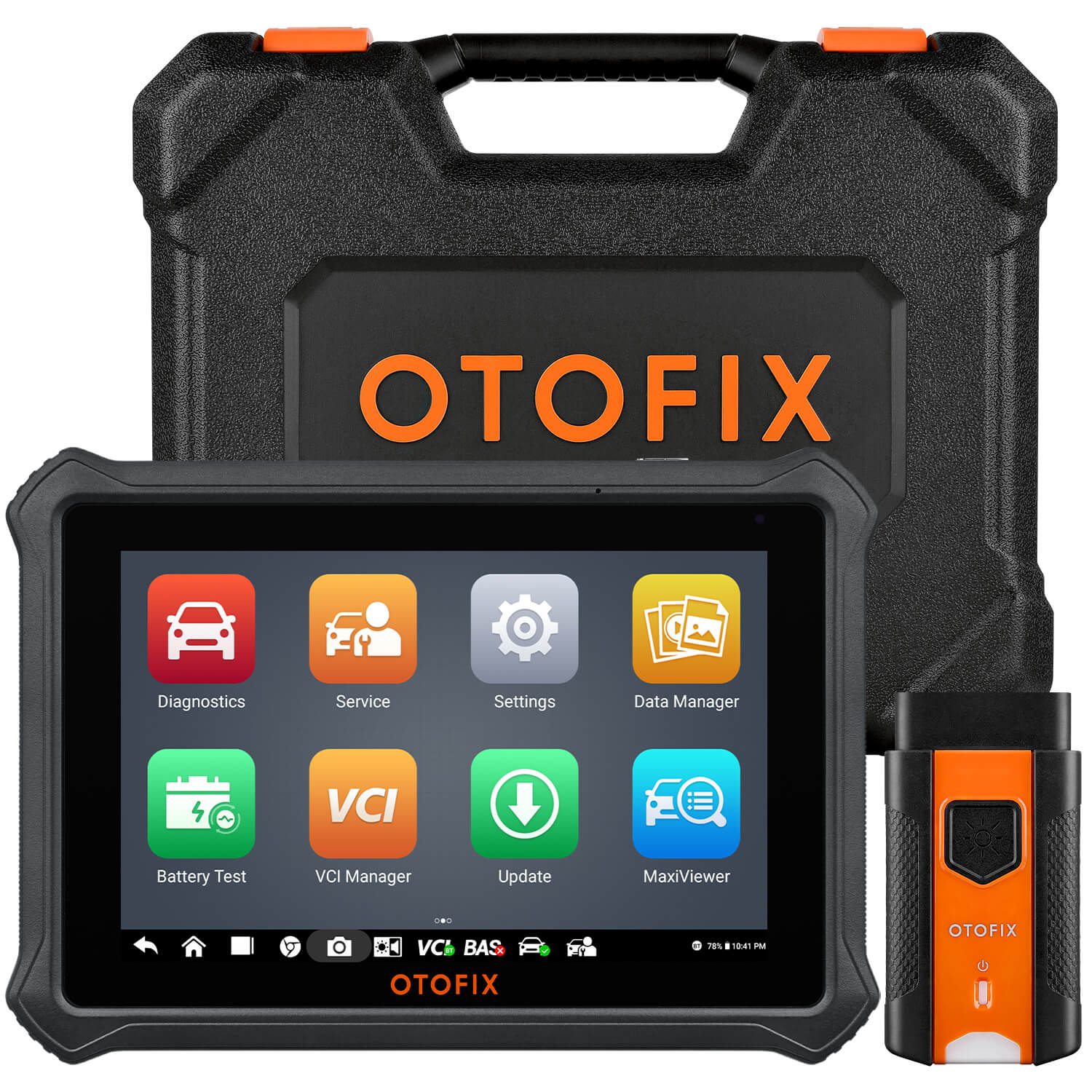

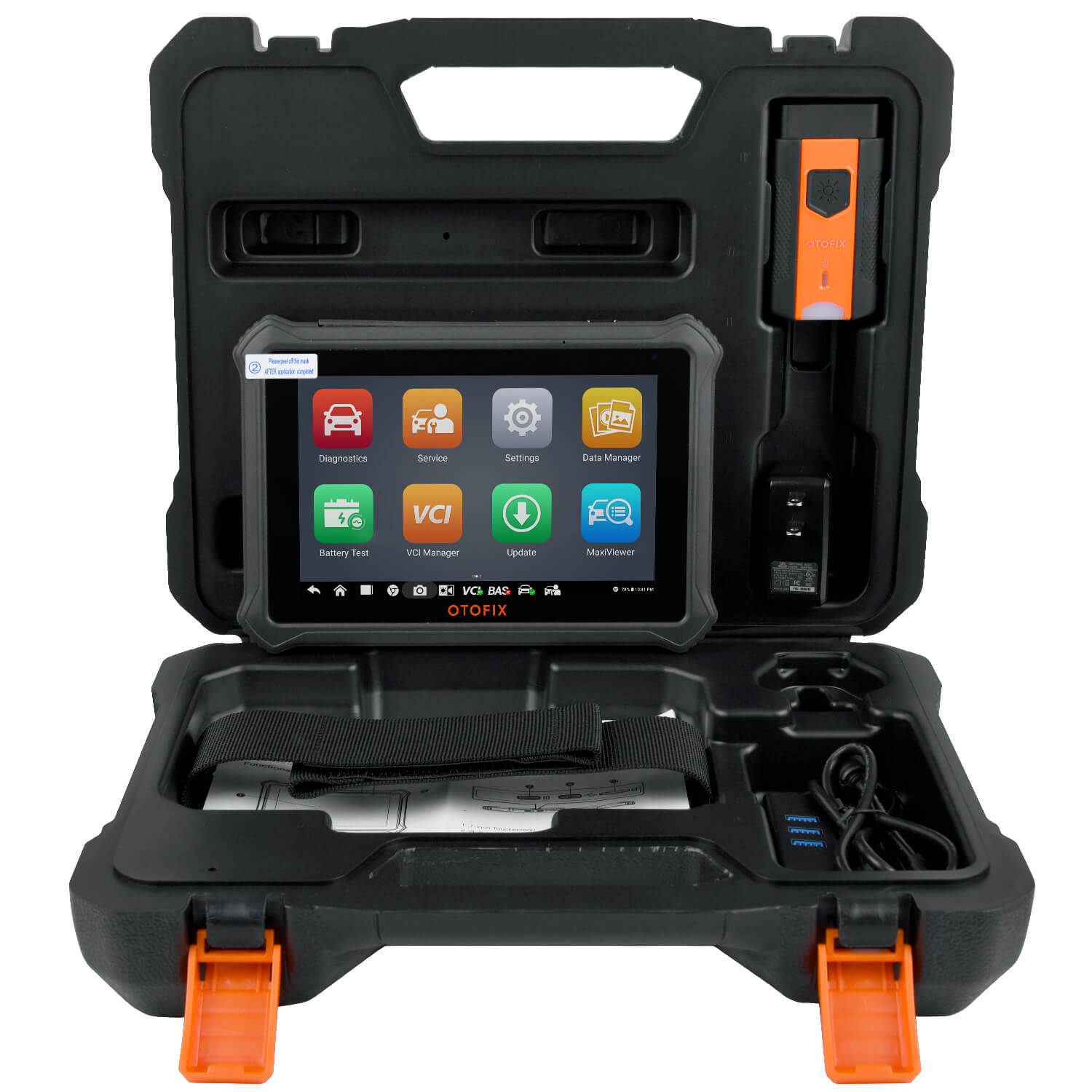

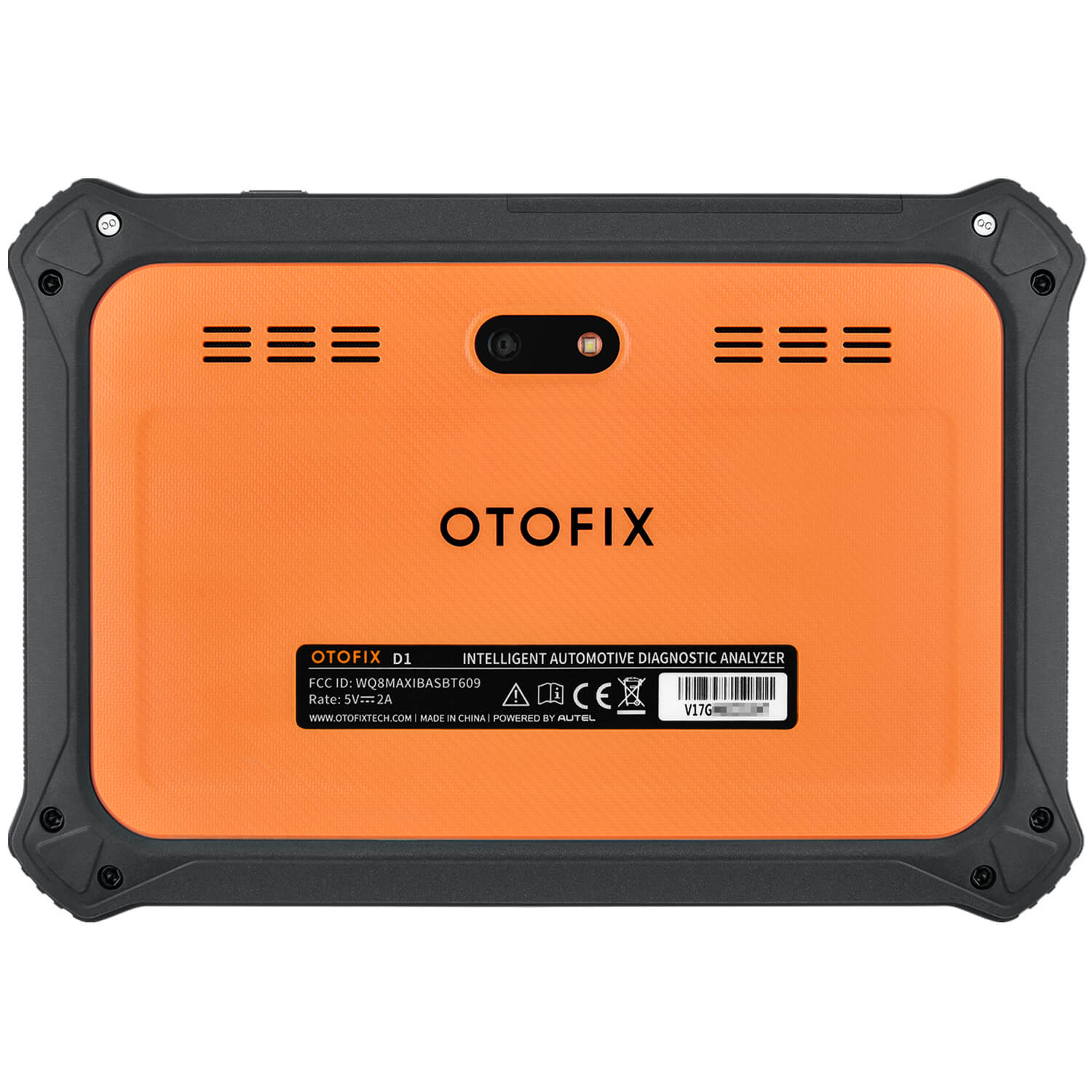

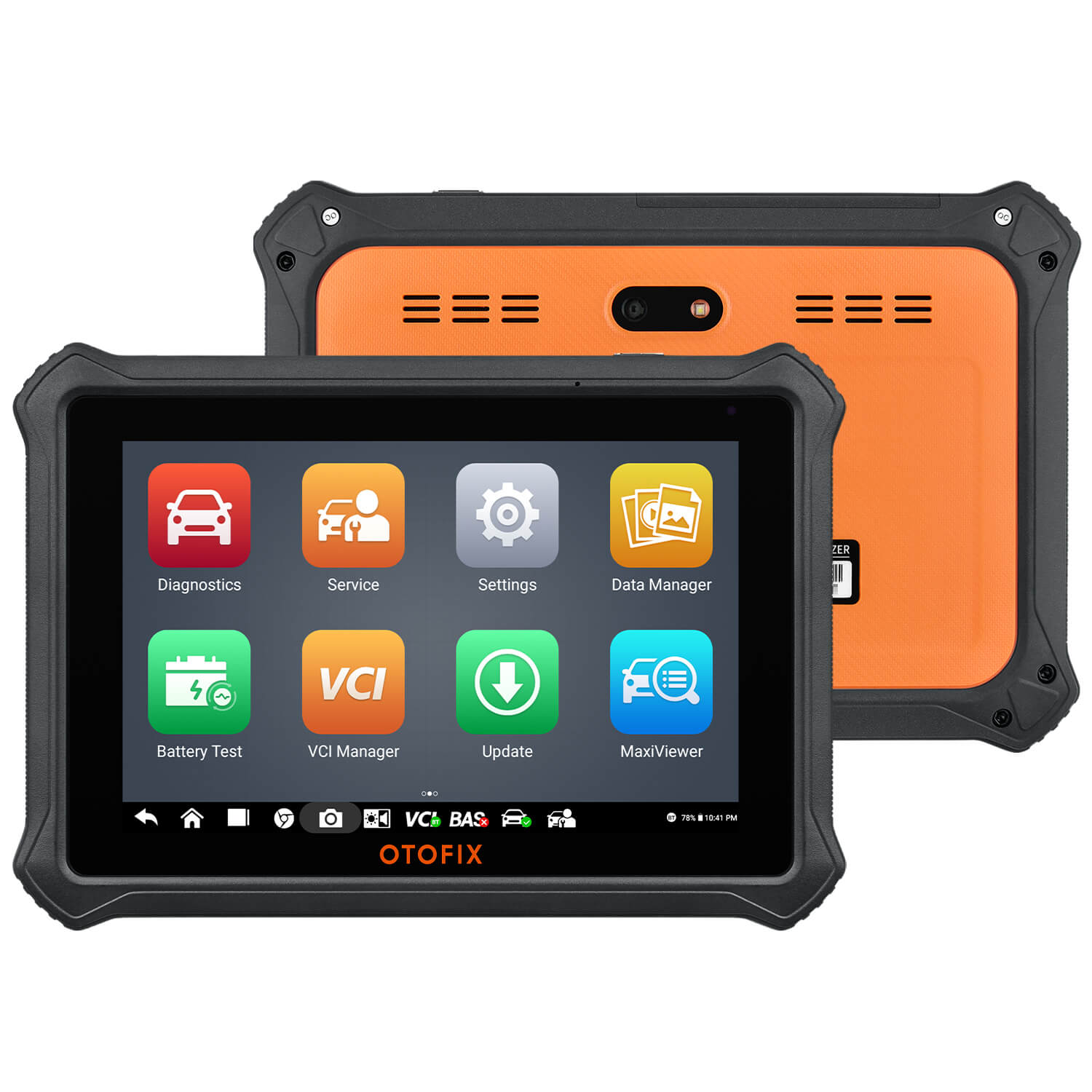

The OTOFIX D1 Intelligent Automotive Diagnostic Analyzer is an all-in-one handheld tool for all your DIY car repair needs. The OTOFIX D1 is built on an Android 9.0 tablet featuring a 7" LCD capacitive touchscreen with 1280*800 resolution, has a 4x ARM Processor, and 64GB of storage. OTOFIX D1 Diagnostic Tablet supports the smart diagnosis for all available vehicle systems and features up to 26 service functions and offers exceptional OE-level diagnosis and DTC analysis. Combined with the OTOFIX cloud service, it provides you with one-stop solutions from diagnosis to fix.
- Extensive vehicle coverage for about 53 US, Asian and European vehicle models. Full System Active Test.
- Capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
- Exclusive diagnostic and repair tips database created by Cloud-based MaxiFix online community.
- Read/clear codes for all available systems. Display live data in text, graph & analog for easy data review.
- Auto VIN technology can automatically identify the vehicle’s make, model, and year information in no time.
- Connect seamlessly with OTOFIX cloud service to obtain remote expert support and share diagnostic reports.
- Supports bi-directional control to perform active tests to check component's functionality.
Comprehensive 30 Service Functions
1). Oil Service Reset – Performs reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate, and turns off the warning light;
2). TPMS Service – Quickly looks up the tire sensor IDs from the vehicle's ECU, as well as performs TPMS programming and reset procedures after tire sensors are replaced;
3). EPB Service – Initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately;
4). ABS/SRS Services – Performs various bi-directional tests to check the operating conditions of both the Anti-lock Braking System and the Supplemental Restraint System;
5). SAS Service – Performs steering angle adjustment, clears steering sensor fault memory and turns off steering wheel warning light;
6). DPF Regeneration Service – Clears particulate matter from the DPF filter to stabilize the filter performance.
7). BMS Service - Perform a reset on the vehicle battery for clearing the fault information and re-match the battery;
8). Brake Bleed - When your brake pedal becomes soft and inconvenient to control, this diagnostic tool can perform bi-directional tests to check the Anti-lock Braking System;
9). IMMO Service - Clear the lost car key's information and program the new key into the ECU database to protect the user's car from being stolen;
10). Injector Coding - Make the cylinder better identify injector after ECU or injector is replaced;
11). SAS Service - to perform calibration for the Steering Angle Sensor and clear steering sensor fault memory;
12). Throttle Adaptation - initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately
13). Headlamp, Suspension, Lang change, Odometer, Seats, CHG tire size, TEC learn and WIN DR ROOF, etc
OTOFIX D1 All Systems in-depth Diagnostics Functions
OTOFIX D1 performs complete systems diagnoses including functional tests, retrieving vehicle diagnostic information (error codes), freeze frame data and live data for various vehicle control systems (engine, transmission, ABS, etc.). OTOFIX provides its users with all the information important to a vehicle's health in an accessible, easy-to-read way.
1) Read/Erase Error Codes and show ECU information：
OTOFIX D1 can read and show detailed specific information for the tested control unit, including unit type, version numbers.
Displays detailed information of DTC records retrieved from the ECU and erases DTC records and other data from the ECU.
2) Live Data:
Retrieves and displays live data and parameters from the test vehicle's ECU instead of preinstalled information.
3) Bi-directional Active Test/Actuator Test
During the actuator test/active test, OTOFIX D1 outputs the command to the ECU to control and drive the actuators, and then by reading the ECU data, and monitoring the operation of the actuators, such as switching an injector between two operating states to diagnose the integrity of the system or parts. (This option is used to access vehicle-specific subsystem and component tests. The available test varies by the vehicle manufacturer, year, and model.)
This function can test specific subsystems and components. It’s also called Actuator Test or Function Test. Bi-directional Active Test allows OTOFIX D1 to interactively operate and test vehicle devices like wipers, door controls, windows, a/c, engine fans, idle control, etc.
Intelligent Applications to Facilitate Data Management
1). Shop Manager: OTOFIX D1 can manage and edit the workshop information, customer information records, and save the tested vehicle history records.
2) Data Manager: OTOFIX D1 can store, print, and send the saved files with Wifi connection.
3) System Update: Receives the regular on-line messages from the server for system update notification or other service information.
OTOFIX D1 Supported Vehicle List:
Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes Exceptional OE-Level system coverage for all electronic systems Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
1. European vehicle :
AUDI, BENZ, BMW, DACIA, EU-D, LANDROVER, MINI, OPEL, PEUGEOT, RENAULT, SEAT, SKODA, V-W, VOLVO, SMART, JAGUAR, BENZ SPRINTER, SAAB, FIAT, ABARTH, LANCIA, ALFA ROMEO, VAUXHALL, MAYBACH, BENTLEY, BUGATTI, PORSCHE.
2. USA vehicle :
FORD, GM, CHRYSLER,
3. Asia vehicle list:
SUZUKI, KIA, DAEWOO, ISUZU, TOYOTA, SUBARU, SCION, NISSAN, MITSUBISHI, LEXUS, INFINITI, HYUNDAI, HOLDEN, HONDA, ACCURA, MAZDA.
