Autel MaxiTPMS TS501 TPMS Programming Tool - 2023 Newest
As the upgraded 2023 version of Autel MaxiTPMS TS401 and TS408, the TS501 TPMS Tool is capable of diagnosing the newest models up to 2020. With frequent updates, it ensures compatibility with the latest vehicles. It includes all TPMS service options, such as TPMS programming with Autel MX-Sensors, TPMS reset, TPMS health diagnosis, reading sensor data, and key fob frequency testing.
Autel MaxiTPMS TS501 Capable of Wirelessly Diagnosing TPMS Problems
- Programs vehicle ECU to learn sensor IDs and positions
- Receives 315 MHz, 433 MHz and 309MHz signals
- Reads sensor ID from vehicle ECU
- Reads/clears codes of TPMS system and resets malfunction indicator light
- Simplifies the diagnostic process including four and five wheel
- vehicles by showing vehicle graphs
- Decodes sensor data and provides visual and audible
- responses to confirm sensors are working properly
- Interprets data including sensor ID, tire pressure, temperature
- battery status and OE part no.
- Pre-selection process offers faster activation and diagnostics
Relearn/ Activate All Known TPMS Sensors
In order to disable the TPMS warning light after replacing sensors, you need to relearn the sensors to the vehicle. The Autel TS501, as the new generation of TPMS diagnostic and reset tool in 2023, offers an additional OBD Relearn Method compared to the TS401 and TS408 models. Additionally, the TS501 can wirelessly activate all OEM and universal TPMS sensors available in the market. It allows for easy retrieval of TPMS sensor data, including Sensor ID, Tire Pressure, Tire Temperature, Sensor Battery, Sensor Position, and Frequency.
Three Ways to Relearn All Known Sensors
- OBD Relearn
- Stationary Relearn
- Automatic Relearn
TPMS Programming (Autel MX-Sensors)
The TS501 TPMS Programming Tool allows car enthusiasts to effortlessly program sensor data into Autel MX-Sensors, eliminating the need for expensive and time-consuming trips to the dealership. With the TS501, you have two programming options for AUTEL MX-Sensor (315/433MHz): Auto Create, and Copy by OBD (not available with TS408). This tool enables you to replace faulty sensors with low battery life or ones that are not functioning properly.
Autel Create: When it is unable to obtain the original sensor ID.
Copy by OBD: Allows you to write in the saved sensor information to MX-Sensor after performing Read IDs from Vehicle in Relearn function.

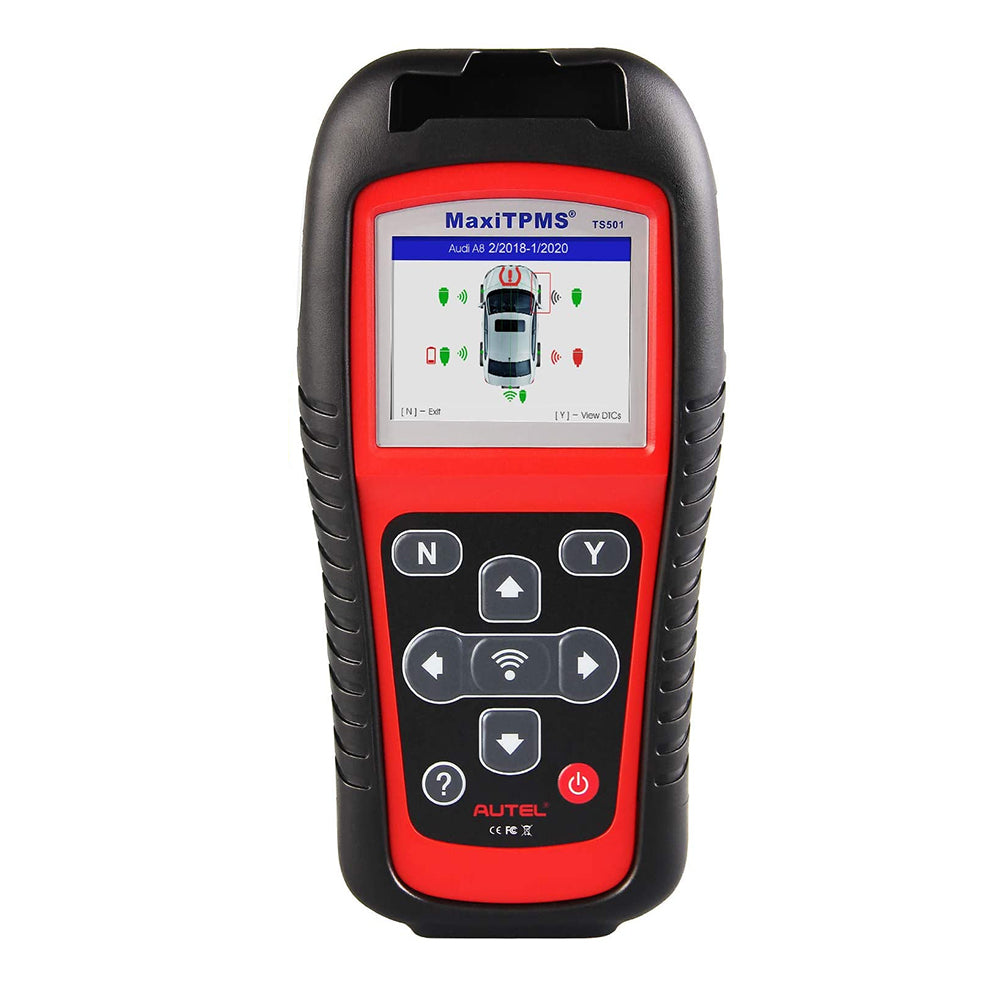

At-A-Glance TPMS Status Screen
The single-screen organization of the TS501 TPMS Programming Tool provides a convenient way to read direct feedback from all four sensors. This layout allows you to effortlessly comprehend the status of all TPMS features, compare sensor and ECU data, and quickly identify system faults for troubleshooting. With an at-a-glance view of all sensor information, you can easily determine the location of sensors with low battery levels that need to be replaced soon.
Complete TPMS System Scan Tool
The Autel TS501 automotive diagnostics tool offers a comprehensive solution for TPMS-related tasks. It can activate all TPMS sensors, read sensor data, conduct TPMS diagnosis, and perform a comprehensive TPMS health check, all in one step.
Additionally, it can read and clear TPMS diagnostic trouble codes (DTCs) and provides on-screen descriptions for easier understanding. The tool also allows for scanning TPMS sensor IDs and copying them into compatible MX-Sensors. Manual input of original equipment (OE) IDs into MX-Sensors is also supported.
Furthermore, the TS501 has the capability to program MX-Sensors by automatically generating sensor IDs. It features a relearn by OBD function with a built-in relearn procedure guide. Lastly, the tool can check Key FOB functionality.
Easy To Use Software Operation
Performing basic sensor activation or complex diagnostic tool functions is easy as following the program options and on-screen display instructions. The TS501 provides code definitions and visual/audio responses to make the operations much easier and more convenient to complete.
Download FREE software updates for enhanced diagnostic functions and extended vehicle coverage. Now even your old TPMS tool can perform like new!
OBDII Connected TPMS Diagnostics
The TS501 can provide relearn procedures for specific sensors and connect with the OBDII cord to the vehicle's ECU to offer multiple programming options including clone sensor IDs, auto-create ID, or manual write sensor IDs with no sensor re-learn required for sensor positioning.
One Tool to Perform Every Step in TPMS TS501
Autel TS501 Package List:
- 1 x MaxiTPMS TS501 tool
- 1 x OBD II cable
- 1 x USB cable
- 1 x Carry Case
- 1 x Power Adapter
- 1 x SD Card
Autel MaxiTPMS TS501 Specifications
||TFT color display (320 x 240 dpi)
||3.7 V Li-polymer battery; 2400mAh
||0 to 50°C (32 to 122°F)
||-20 to 70°C (-4 to 158°F)
|Dimensions (W x H x D)
||202.2 mm (7.96") x 106.7 mm (4.20") x 37.7 mm (1.48")
||Mini USB 2.0*1
||0.4 kg (0.88 lb.)
MaxiTPMS TS501 Product guides and documents
TS501 User Manual (PDF) TS501 Functions List - US (PDF)
