Autel MaxiSys Elite -- The Most Advanced and Reliable Car Diagnostic Scanner On The Market
Autel MaxiSys Elite integrates OE-Level all system diagnostic, Special service and ECU programming to one, allows you to control your car’s components, engine, sensors, and systems wirelessly, is the most advanced scanner in the MaxiSys line of smart diagnostic tools
Autel MaxiSys Elite is equipped with the latest 1.8GHz Quad-Core Processor and Android 4.4.4 OS. So, it offers you 2x faster operation speed than any comparable device. Addition, featured with 9.7” capacitive screen able to respond to gloved, moistened, and even greasy fingers.
Autel Maxisys Elite can perform ECU programming, IMMO key programming, ABS bleeding, A/C initialization, Auto VIN, oil reset, and injector programming among others.
Superior EUC Coding & Programming
OE-Level ALL Systems Diagnostics
Special Functions Supported
2 Year Warranty & Free Online Update
Upgraded Version of MS908P Pro/ MK908P Pro
Coverage for more than 80 US domestic, Asian and European makes and models
Ship to US and Canada Only!
Why Autel Maxisys Elite so professional?
With this professional obd2 diagnostic scanner you can perform complex functions:
Reprogram your car usingECU programmingusing an interface that’s SAE J2534-1 & -2 compliant vehicle programming.
Secure your car using theIMMOfeature to prevent engine start until the correct car key is inserted.
Depressurize system from the air by bleeding the brakes (ABS bleeding).
Initialize AC procedures.Resetoil, tire pressure reset.
UseAuto VINtechnology to identify your car with a 17 character digit code.
See injector controls usinginjector programming.
Apply electronic parking brake (EPB) when parking your car for added safety.
Filter out the soot that is generated in the engine usingDPFtechnology and extend your car’s efficiency.
Reduce road shocks and improve driver control usingSASfeature.
Commonly used 38+ maintenance service.
Autel Maxisys elite key programming video
More Features of Autel Maxisys Elite
1. Full System Diagnosis & Full OBDII functions
Using additional OEM software, the Maxisys Elite can be used as a Pass-Thru diagnostics tool as well, which allows users to read and clear Diagnostic Trouble Codes (DTCs) and data log PIDS, collect sensor data and log generic OBDII data, etc.
Similar to many Autel scan tools, the Autel Maxisys Elite can perform all the OBD II test modes. These include the latest powertrain diagnostic data, freeze frame data, emission diagnostic trouble codes, emissions diagnostic data, oxygen sensor monitoring test results, onboard monitoring tests, VIN, and many more
2. Advanced functions & Online Programming
Other notable functionalities of Maxisys elite include anti-theft matching, SAS reset, tire pressure reset, injector programming, DPF reset, and throttle matching etc.
With this powerful tool, you can completeECU programmingon various BMW and Benz vehicle models. Undoubtedly, This feature is one of the most valuable and worthy functions.
Additionally, it offers you “Coding function” so that you can perform coding and programming on the complex control modules of a vehicle.
3. Extensive vehicle coverage & Extra Vehicle Adapter
This is one of the most extensive diagnostic scan tools with complete system coverage for more than 80 US domestic, European, and Asian vehicle makes and models.
Even though it is an OBD II Scanner, it as well works on some OBD 1 vehicles. Some of the famous car brands that this scan tool is compatible with include GM, Ford, Chrysler, Audi, Toyota, Nissan, Honda, BMW, Benz, Chevrolet, etc.
4. Faster & Powerful battery
With a fast operating system in the Android 4.4.4 Kitkat and 1.8 GHz processor, which make Maxisys Elite to the fastest and accurate scanner on the market. It is faster more than the Maxisys Pro(ms908p) scan tool which has Android 4.0 and 1.4 GHz processor.
The Autel Maxisys Elite features a powerful 13600 mAH 3.7v lithium battery (make sure the unit keeps running time more than 14hours ), while the Autel Maxisys Pro features an 11000 mAh 3.7v lithium polymer battery.
5. Mobile Wireless Remote Control
The MaxiSys Elite is mobile perfection. Autel’s newest 9.7inch powerhouse offers a streamlined unibody design and the world’s most advanced BT to handle.
6. Easy Charge With a Docking Station
7. Super-sensitive Capacitive Screen Touch for Auto Repair's Need
8. Comprehensive After-sales Service
Data Manager is used to store, print, and review the saved files. Shop Manager helps you to manage the workshop information, customer information records, and keep test vehicle history records. MaxiFix platform access to a comprehensive database diagnostic tips, troubleshooting tricks, repairing procedures, and more.
Autel MaxiSys Elite Specifications:
Android 4.4.4 KitKat
NVIDIA Tegra® 4 (4-PLUS-1 Quad-core Processor) 1.8GHz with ARM Cortex – A15 CPU
2GB RAM & 32GB Embedded Memory
9.7” Retina display with 2048X1536 resolution & Capacitive touch screen
802.11a/b/g/n/ac WIFI Version 2.1 3Mbs Bluetooth RJ45 Ethernet Connection 3.0 USB (2.0 Compatible) HDMI 1.4a SD Card (Support up to 32GB)
Rear: 8.0 Megapixel, Autofocus with Flashlight Front: 2.0 Megapixel
Ambient Light Sensor, G-sensor
Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack
Power and Battery
3.7V/13600mAH Lithium-polymer battery DC/12V/3A Power Supply
-10 to +55°C
-20 to +70°C
Dimensions (W x H x D)
309 X 225 X 35 (mm)
Autel MaxiSys Elite Package List
1x Maxisys Elite Main Unit
1x MaxiFlash Elite
1x USB Ethernet Adapter (Optional)
1x BMW Ethernet Cable (Optional)
1x Ethernet Serial Cable (Optional)AC/DC Adapter (12V)
1x AC/DC Adapter (12V)
1x Adapter for GM/Daewoo-12
1x Adapter for Fiat-3(Cancelled)
1x Adapter for Benz-38
1x Adapter for Mitsubishi/Hyundai-12+16
1x Adapter for Honda-3
1x Adapter for PSA-2(Cancelled)
1x Adapter for BMW-20
1x Adapter for Kia-20
1x Adapter for Nissan-14
1x Adapter for VW/AUDI-2+2
1x Adapter for Benz-14 (Europe Only)
1x Adapter for Chrysler-16 (America Only)
1x Cigarette Lighter
1x Docking Station
1x TS Screwdriver
1x User Manual
1x Quick Reference Guide

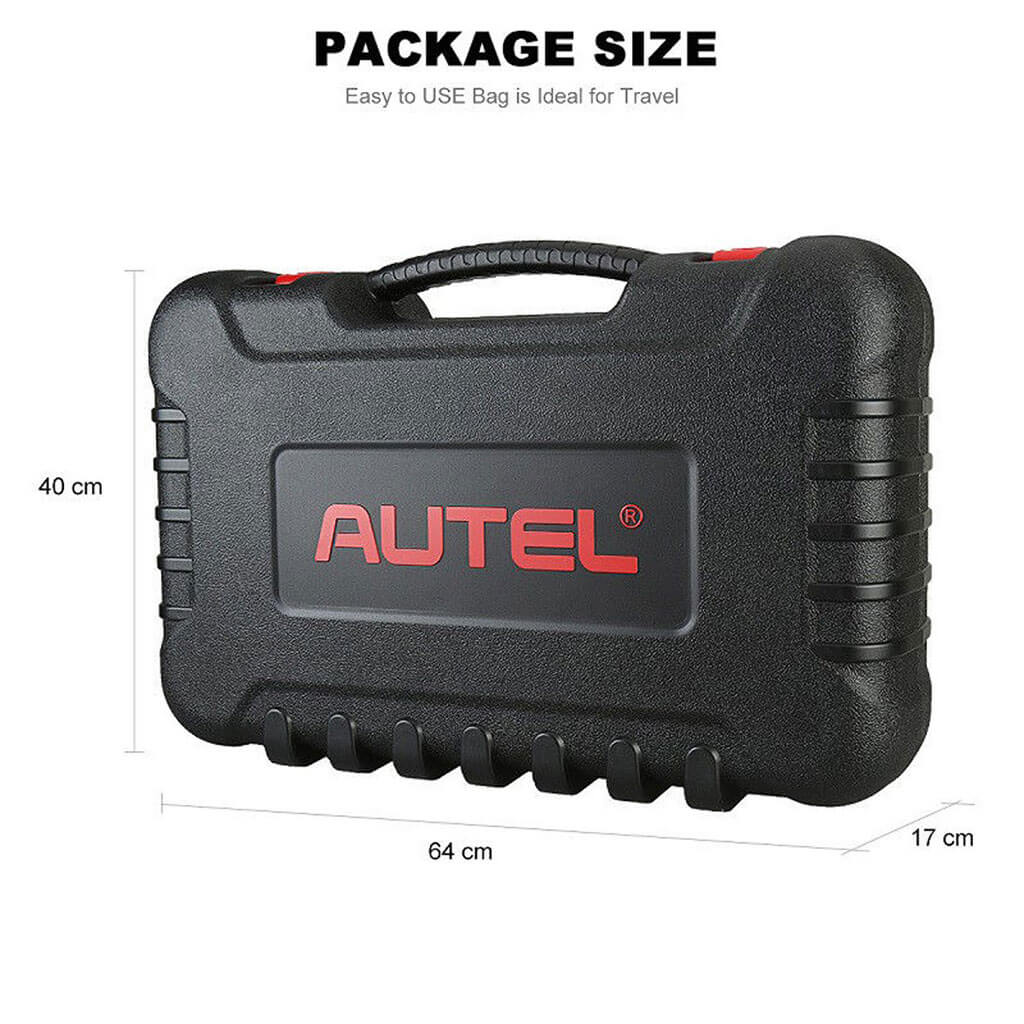

1x Carrying Case
1x Lighter Fuse
1x Main cable
1x USB Cable
1x Clipper Cable
1x Soft Cloth
1x Mini USB Cable
Note: If the cable is Optional, it is not included in the box! There are some empty slots in the package. (Fiat-3, PSA-2, BENZ-14 adapter are cancelled now, if you need them you can buy them additionally!)
