Autel MaxiPRO MP808BT Pro Kit Diagnostic Scanner - ECU Coding
Autel MaxiPRO MP808BT Pro Kit is definitely the best scanner you can get in 2023 with its fully upgraded hardware and software functions. Equipped with ECU Coding same as MS906BT/MS906 Pro, 5X Faster Working Speed, OE-Level All Systems Diagnostic, Bi-Directional Control, 37+ Hot Services and VAG Guided Functions, Autel MP808BT Pro Kit will provide you a totally fresh & speed working experience regarding car diagnostics and services.
Autel MaxiPRO MP808BT Pro Kit Main Features
- Android 11 & Rockchip RK3566
- 4G & 64G Memory & 5000 mAh
- 2.4 & 5 GHz Dual WIFI & 1024x600 Resolution
Advanced ECU Coding: Same ECU Coding Level as MS906BT/ MS906 Pro.
Unlock Hidden Functions: Supports unlock hidden functions on BMW, VW, Audi, Skoda, etc.
VAG Guided Functions: Compatible with VW, Audi, Skoda, Seat, Man LD for step-by-step operation instruction.
Bi-directional Control: Send action command to ECU modules/ sensors to check the integrity of the modules to locate the faulty parts.
37+ Service Functions: Including Oil Reset, EPB service, ABS Auto Bleed, BMS Reset, SAS Calibration, Power Balance Test, Crankshaft Relearn and etc.
OE-Level Diagnostics: Works on more than 150+ US, Asian and European vehicle makes/ models to perform OE-Level all systems diagnostics.
FCA AutoAuth: Supports FCA AutoAuth login to work on the FCA vehicles directly ( for Chrysler, Dodge, Jeep, Alfa Romeo, Fiat produced after 2018), no extra cable needed.
Works with BT506 Battery Tester and MV108S: Compatible with Autel BT506 battery tester and MV108S endoscope camera.
Comes with Non OBD2 Adapters: For Honda-3, BMW-20, Fiat-3, PSA-2, GM/Daewoo-12, Chrysler-16, Nissan-14,Kia-20, Benz-38, VW/Audi-2+2, Hyundai-12+16
NO IP Limitations & Multi-language Supported: Use this device without IP Limitation and change the language you prefer.
2-Year Software Updates: Backed by 2 year free software updates(Limited Time purchased from May 31st, 2023 to December 31st, 2023).
Autel MP808BT Pro Kit with ECU Coding
Autel MaxiPRO MP808BT Pro Kit is now the most affordable choice in 2023 for those who are looking for a ECU Coding level diagnostic scan tool. Upgraded than the old MP808, same software functions as MS906BT/ MK906BT/ MS906 PRO/ MK906 PRO, MP808BT Pro Kit is changing the history: no need to spend 1200 bucks, with only 669 bucks you can have an automotive scan tool with real ECU Coding functions. Based on the fully updated Android 11.0 OS, 4GB and 64GB built-in memory, Autel MP808BT Pro Kit auto scanner provides 4x faster feedback than the old scanners.
What can ECU Coding Function do for you?
- Match / Code / Learn Replaced ECU
- Activate High-End Features
- Online ECU Coding for BMW / Porsche / VW, etc
- Customization Settings
- Code Adaptive Data
- Improve your Vehicle Performance
Unlock Hidden Feature
- You can use the MP808BT Pro Kit to refresh hidden functions and customize the configuration already in the vehicle. including one-click start/stop, seatbelt warning sounds, one-button folding mirrors and more.
VAG Guided Functions
- The MP808BT Pro Kit can be used with VAG Guided Functions, such as VW, Audi, Skoda, Seat, Man LD, Bently, etc. This function is able to simplify complex functions and improve efficiency, which make your work easier.
Note: The MP808BT Pro Kit is not universal for vehicles, please email us your VIN to check.
OE-Level All Systems Diagnostics Works on 99% of Vehicles
Autel MaxiPRO MP808BT Pro Kit automotive diagnosis scan tool can scan all the available systems for DTCs and data streams, and perform active test on OE-Level for comprehensive diagnosis on vehicles, systems such as PCM, ADAS, DDM, PDM, TRM, ACM, Powertrain, RCM, APIM, GWM, PSCM, AWD, DSM, ABS, HVAC, IPC and all other electrical modules. Autel scan tool MP808BT Pro Kit has same diagnostic software as Autel MaxiSys 906 Series product (MS906BT, MS906 PRO, MS906 PRO-TS), but unlike MS906 with short limited OBD2 cable, Autel MP808BT Pro Kit is with the VCI Mini for BT communication, you can work remotely within 33 feet (10m) range, more mobility and flexibility.
1. Read/ clear codes for all available electronic systems
2. Turn off warning lights
3. Display live data in text, graph analog for easy data review
4. Supports all 10 test modes of the latest J1979 OBD II test specs
5. Enhanced OBD II Mode 6
Comprehensive 30+ Hot Services
MP808BT Pro Kit diagnostic tool offers 30+ service functions including Oil Reset, EPB Reset, SAS Reset, DPF Regeneration, Battery Registration, Throttle Reset, ABS Bleed, Injector Coding, Key Fob Programming, etc. And it performs commonly used scheduled service resets that a DIYer or auto technician would need for everyday car maintenance.
Oil Service Reset - Performs reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate, and turns off the warning light;
EPB Service - Initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately;
ABS/SRS Services - Performs various bi-directional tests to check the operating conditions of both the Anti-lock Braking System and the Supplemental Restraint System;
SAS Service - Performs steering angle adjustment, clears steering sensor fault memory and turns off steering wheel warning light;
DPF Regeneration Service - Clears particulate matter from the DPF filter to stabilize the filter performance.
BMS Service - Perform a reset on the vehicle battery for clearing the fault information and re-match the battery;
Brake Bleed - When your brake pedal becomes soft and inconvenient to control, this diagnostic tool can perform bi-directional tests to check the Anti-lock Braking System;
Injector Coding - Make the cylinder better identify injector after ECU or injector is replaced;
SAS Service - To perform calibration for the Steering Angle Sensor and clear steering sensor fault memory;
Throttle Adaptation - initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately
- Headlamp, Suspension, Lang change, Odometer, Seats, CHG tire size, TEC learn and WIN DR ROOF, etc
Bi-directional Control/ Active Test
Autel MP808BT Pro Kit auto scan tool could be a wise choice for anyone needing a bi-directional tool. Autel MP808BT Pro Kit has bi-directional capabilities same and MP808/ MP808S/ MS906 but it's wireless, it can communicate with the vehicle's computer and send action commands to different vehicle's modules to check the working status of the system or component, it s a must-have interactive scan tool for garage and pro technicians for effective troubleshooting and recheck after repair. You can use MP808BT Pro Kit in various scenarios such as:
- Injector Test
- Fuel Heater on/ off
- Radiator Fan on/ off
- Open/ close Windows
- Open/ close Windows
- Turn on/ off the Sound Horn
Wide Vehicle Coverage
The MP808BT Pro Kit automotive diagnostic tablet comes with extensive vehicle coverage for more than 150 US, Asian and European vehicle makes.
To ensure that every car driving into your garage becomes your customer, we have updated the range of models to cover more than 10000+ vehicles. With the emergence of new cars, vehicle coverage is gradually increasing.
America:Lincoln, Ford, Chrysler, Dodge, Jeep, GM, Cadillac, Chevrolet, Buick, GMC, etc.
Europe: VW, Audi, Seat, Skoda, Peugeot, Citroen, Renault, Volvo, Vauxhall, Smart, Saab, Rolls-Royce, Porsche, Mini, Maybach, Lancia, BMW, Jaguar, Fiat, Ferrari, Dacia, Citroen, Bugatti, Benz, Bentley, Volvo etc.
Asia: Acura, Lexus, Toyota, Suzuki, Subaru, Mitsubishi, Mazda, Kia, Isuzu, Infiniti, Hyundai, Honda, Daihatsu, Daewoo, etc,
Helpful Functions For Mechanics & Auto Repair Shops
MaxiFix - Comes with an online troubleshooter database that provides you with all common DTCs databases for most vehicles and allows you to network with other users.
Remote Desk - Works with TeamViewer Quick Support to enable you to receive ad-hoc remote support from Autel's support center, colleagues, or friends, by allowing them to control your tablet diagnostic tool on their PC.
Shop Manager - Owns an application that helps you deal with the daily workshop business and improve customer service by helping you manage the workshop information, customer information records, and much more.
Data Manager - Supports storing, printing, and reviewing the saved files.
Academy - Provides tutorials and technical bulletins written by top-notch technicians and product experts.

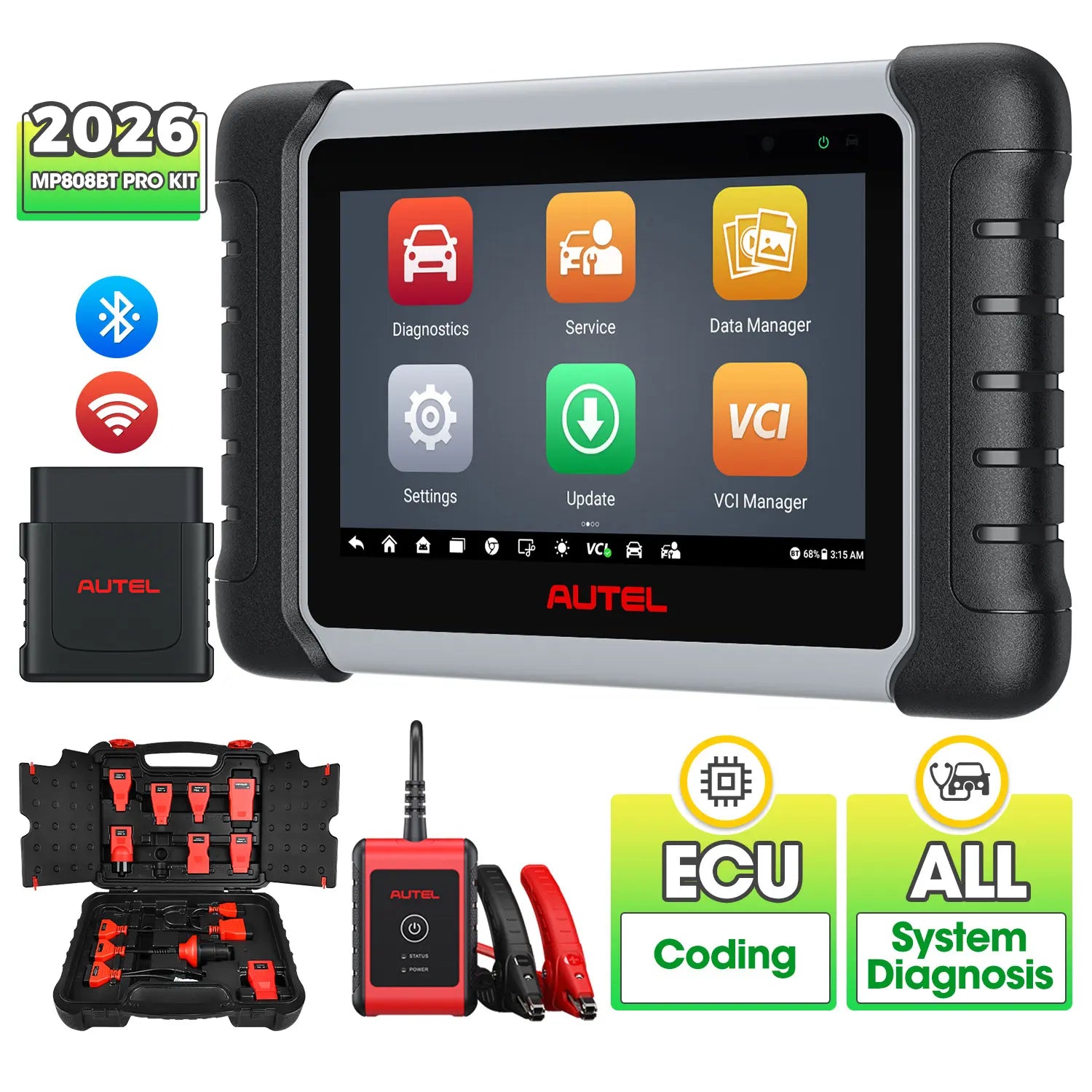

Compatible With Battery Tester(BT506):
The Autel MP808BT Pro Kit can work with the BT506 to do battery tests such as In-vehicle and Out-vehicle test; it can also check the working condition of the vehicle starter and charging system status.

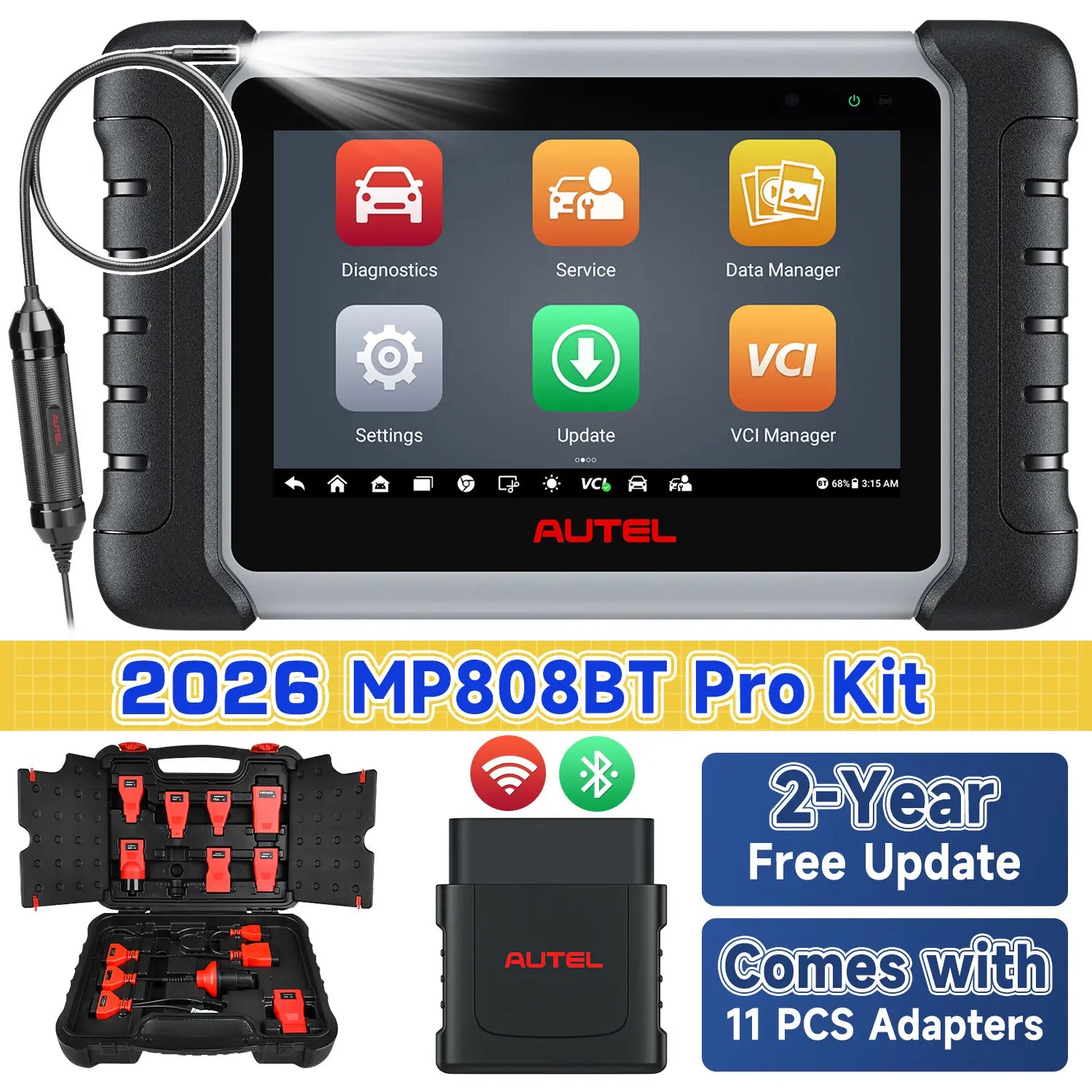

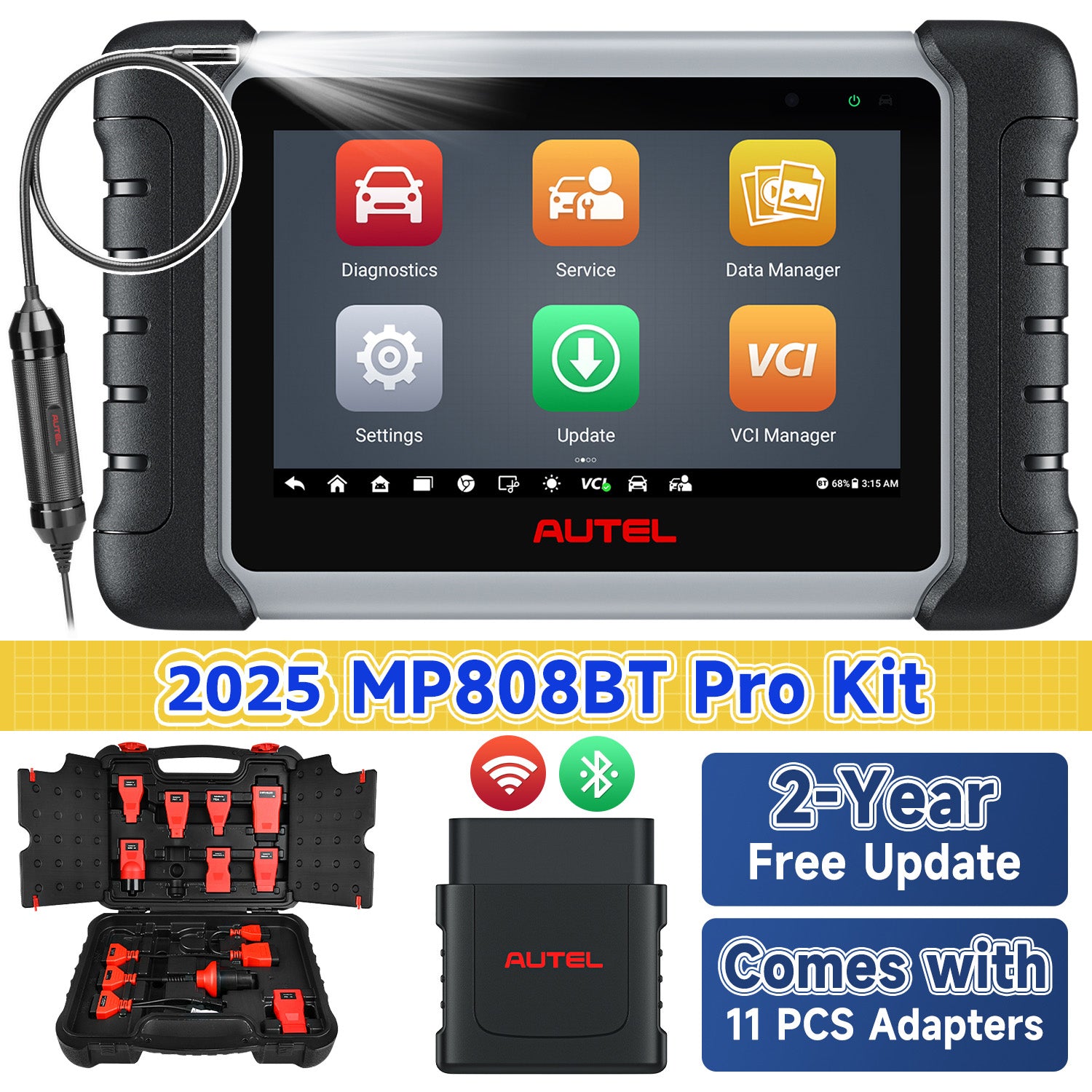

Work With Inspection Camera (MV108):
You can use MP808BT Pro Kit to examine difficult-to-reach areas normally hidden from sight, such as engine cylinders, and small part inspections like spark plug holes, and record digital still images and videos.
Wireless (BT) Connection 33 feet (10m )
Autel MP808BT Pro Kit wireless scan tool is an upgraded version of MP808, DS808 and MS906. It can access all available wireless vehicle systems at a range up to 33 feet(10m).
ABS Auto Bleed
MP808BT Pro Kit auto diagnostic scanner tool comes with a useful ABS Brake Bleeding hot function that enables technicians and home mechanics to bleed air out of the ABS module, which saves you time and money from taking your cars to a dealership or shop.
Data Manager Printing Sharing
MP808BT Pro Kit auto diagnostic scan tool offers Data Printing and Data Sharing features to generate diagnostic reports before and after car diagnostics and maintenance services for comparison, sharing the report with customers by printing it out or sending it via Email.
Autel MP808BT Pro Kit Specification:
||4G & 64GB
||7-inch LCD capacitive touchscreen with 1024x600 resolution
||Ambient light sensor for brightness auto changing
||•Input: N/A, Output: buzzer
|Power and Battery:
||3.7 V/5000 mAh lithium-polymer battery
Charges via 5 VDC power supply
|Tested Battery Life:
||Around 4.5 hours of continuous use
|Battery Charging Input:
||5 V/1.5 A
||500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
||0 to 55°C(32 to 131°F)
||-20 to 60°C (-4 to 140°F)
||5% - 95% non-condensing
|Dimensions (W x H x D):
||237.8 mm (9.4") x 148.6 mm (5.9") x 35.5 mm (1.4")
||788 g (1.74 lb.)
||ISO9141-2,ISO14230-2,ISO15765,K/L-Line,Flashing Code,SAE-J1850 VPW,SAE-J1850PWM, SAE J2610,GM UART UART Echo Byte Protocol,
ISo11898(Highspeed, Middlespeed,Low-speed and Singlewire CAN,fault-tolerant CAN)，Honda Diag-H Protocol,TP2.0,TP1.6
Autel MP808BT Pro Kit Package List:
- 1x MaxiPro MP808BT Pro Main unit
- 11x OBD1 Adapters
- 1x VCI mini
- 1x Power Adapter
- 1x Mini USB Cable
- 1x Main Cable

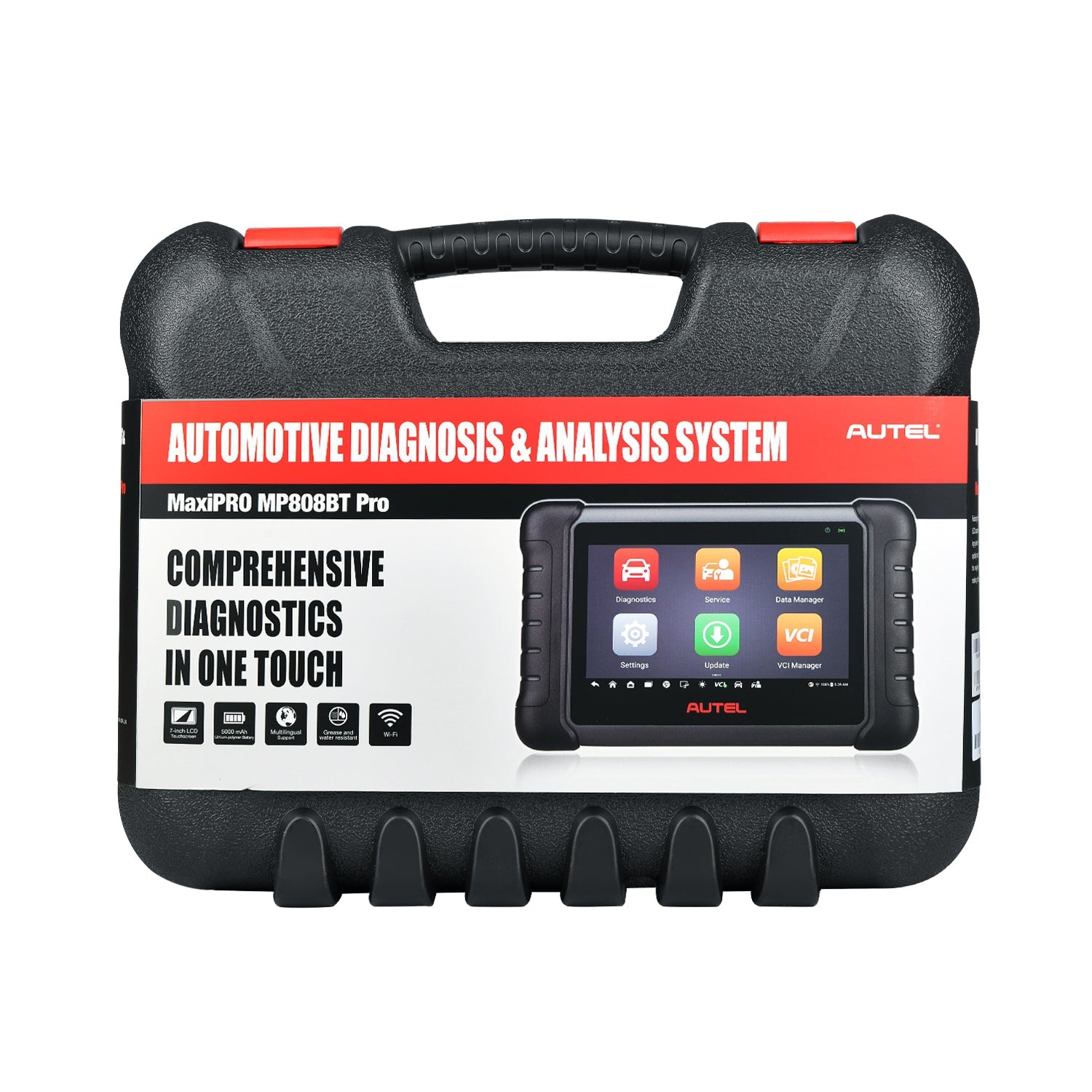

- 1x Carring Case
- 1x Packing List
- 1x Strap
- 1x Quick Reference Guide
Autel MaxiPRO MP808BT Pro Kit Comparison Chart
MP808BT Pro Kit Product guides and documents
Autel MP808BT Pro Kit User Manual (PDF)
Autel MaxiPRO MP808BT Pro Software Update
Autel MaxiPRO MP808BT Pro Software Update Service
Q: What's the difference between MK808BT Pro and MP808BT Pro?
A: MP808BT Pro can do ECU Coding and Unlock Hidden Features, while MK808BT Pro can not.
Q: Do you have Technical support?
A: Yes, We provide lifetime technical support from the Autel official.
Q: Can i use this machine with my language?
A: Yes, This MP808BT Pro is multi-language, which supports English, German,Spanish,Portuguese,French,Polish,Italian,Japanese etc.
Q: How to change language?
A: Please send us your machine S/N number (it is on the machine back),and after we add language ,please make sure update all software in this language version.
