Autel MaxiCOM MK908, an advanced version of MS908, is an OE-Level all system Wireless Diagnostic Scan Tool with ECU Coding, ADAS Calibration, Bi-Directional Control, IMMO Keys and Oil Reset, EPB, SAS, DPF, TPMS, ABS Bleeding, etc 23 special services.
Featuring the super-fast Hexa-Core (1.3GHz + 1.7GHz) processor, an intuitive 10.1-inch LED capacitive touch screen, multitask-capable Android 4.4.2 OS and the coverage of OE-level diagnostics, is the best possible auto diagnostic scanner providing evolutionary smart solution for professionals with Garage or Auto Repairing Shops.

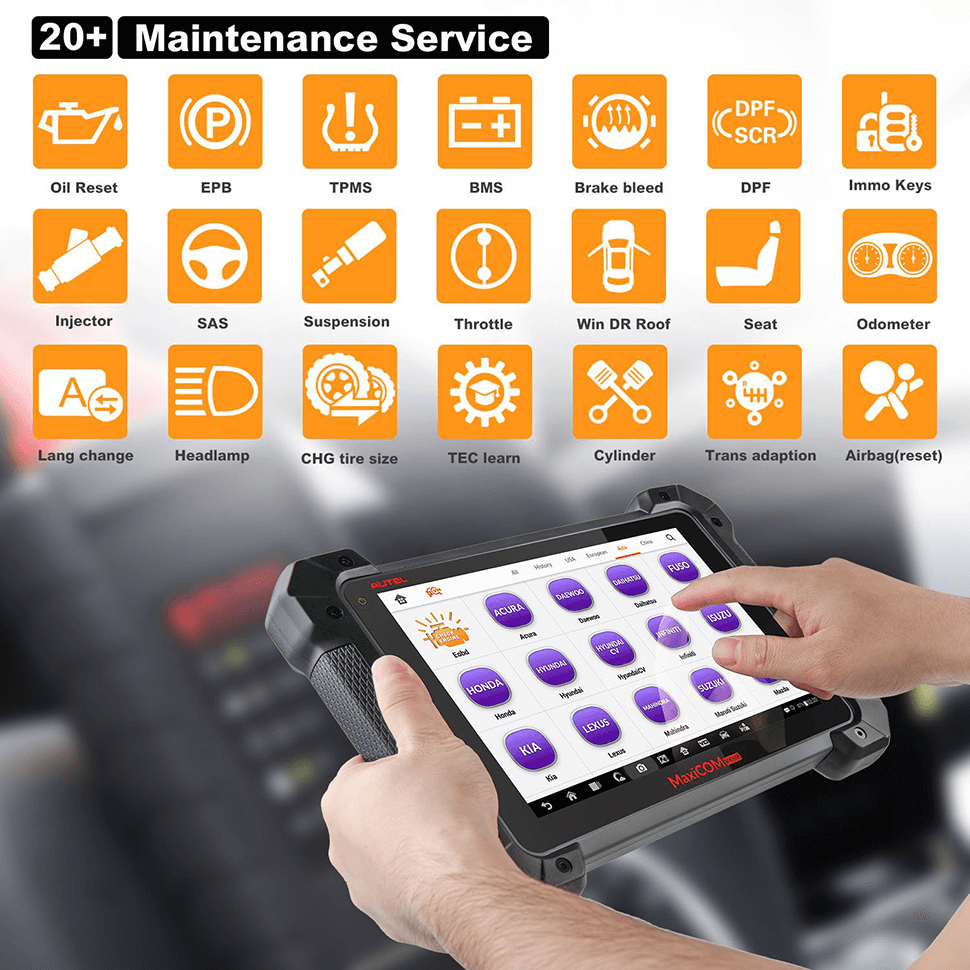

Autel MaxiCOM MK908 Features:
All Systems OE-Level Diagnosis & Services:
As an addition to the complete OBD2 functions of a normal OBD2 scanner, this professional diagnostic computer can diagnosis all car systems:
- Oil reset to close the oil service light and reset service mileage & service interval after you replacing engine oil;
- EPB reset to brake reset the new electronic parking brake for braking wheels safely again;
- SAS reset to clear memories of the previous steering angle sensor and store the replaced one;
- DPF service supports forced fuel injector regeneration and adjustment;
- BMS service to reset battery management system;
- ABS brake bleeding to get a firm brake pad after air exhaustion;
- TPMS service to relearn TPMS sensors so that new sensors can be recognized by ECU;
- IMMO service enables you to disable the lost vehicle keys and program the replacement key fob. It could be one replacement key fob or more, depending on your needs.
Advanced ECU Coding Capability
ECU coding function allows you to establish a data link to the electronic control system of the test vehicle via the VCI device for vehicle diagnosis, service or programming. You can operate functional tests, retrieve vehicle diagnostic information such as trouble codes, event codes and live data, and perform ECU reprogramming, for various vehicle control systems, such as engine, transmission, ABS and more.
NOTE: The ECU programming function can only be applied through connection with the J2534 programming device (Autel MaxiFlash Elite), which serves as a Pass-Thru interface to establish communication with and transfer data to the vehicle’s ECU. ECU programming functions need to buy an Autel MaxiFlash Elite separately. Connect J2534 to MK908 and update the scanner to a MK908P.
ADAS Function for Safer Driving
Advanced Driver Assistance Systems (ADAS) is an array of vehicle systems that aid the driver either through passive alerts or by active control of the vehicle to drive safer and with greater awareness and precision.
Autel ADAS Calibration Tool provides comprehensive and precise ADAS calibration. It covers vehicle makes including Benz, BMW, Audi, VW, Porsche, Infiniti, Lexus, GM, Ford, Volvo, Toyota, Nissan, Honda, Hyundai, and Kia.
Supports the calibration of multiple driver assistant systems, including Adaptive. Cruise Control (ACC), Night Vision System (NVS), Lane Departure Warning (LDW), Blind Spot Detection (BSD), Around View Monitoring (AVM), Rear Collision Warning (RCW) and Heads-up Displays (HUD).
Autel MK908 Specification:
|Operating System||AndroidTM 4.4.2, KitKat|
|Processor||Samsung Exynos hexa-core Processor
(1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
|Memory||2GB RAM & 64GB On-board Memory|
|Display||10.1-inch LED screen with 1920x1200 resolutions|
|Connectivity||Wi-Fi (802.11 a/b/g/n/ac)
BT v.2.1 + EDR
SD Card (Support up to 32GB)
|Camera (rear)||8.0 Megapixel, AF with Flashlight|
|Sensors||Gravity Accelerometer, Ambient Light Sensor (ALS)|
|Input Voltage||12 V (9-24 V)|
|Power Consumption||6.5 W|
|Operating Temp.||0 to 50°C (32 to 122°F)|
|Storage Temp.||-20 to 60°C (-4 to 140°F)|
|Housing||Strong plastic housing with protective rubber boot|
|Dimensions (WxHxD)||312mm (12.28”) x 208mm (8.18”) x 36mm (1.41”)|
|Weight (NW)||1.48kg (3.26 lb)|
|Updates||1 Year free updates online|
|Language Support||English, Spanish, French, German, Polish, Italian, Japanese, Dutch, Portuguese, Russian|
- MaxiCOM MK908 Unit
- Bluetooth Diagnostic Interface
- AC/DC Adapter (12V)
- Adapter for Benz-14 (Europe Only)
- Adapter for Chrysler-16 (America Only)
- User Manual
- Carrying Case
- Quick Reference Guide
- Lighter Fuse
- Main cable
- Adapter for GM/Daewoo-12
- Adapter for Audi-2+2
- Adapter for BMW-20
- Adapter for Benz-38
- Adapter for Kia-20
- Adapter for Mitsubishi/Hyundai-12+16
- Adapter for Nissan-14
- Adapter for Honda-3
- USB Cable
- Cigarette Lighter
- Soft Cloth
- Packing List
- Mini USB Cable
